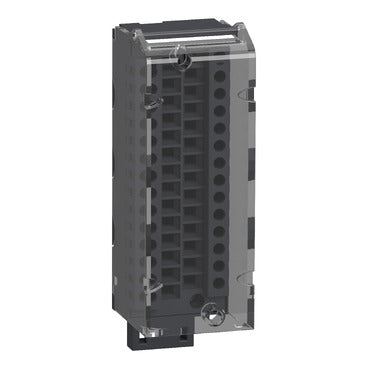

This removable caged terminal block provides 28 cage clamp terminals for wiring within the Modicon X80 range, accepting single conductors from 0.34 mm² to 1 mm². It is used in control panels to terminate field wiring to Modicon X80 automation modules, with the removable design allowing the block to be disconnected from the module without unwiring individual conductors. The cage clamp terminals secure each wire mechanically, suiting applications where conductors need to be added or replaced during panel maintenance.
| Product Name | 28-pin Removable Caged Terminal Block |
| Product ID | BMXFTB2800 |
| Range of Product | Modicon X80 |
| Number of Terminals | 28 removable cage clamp terminal block |
| Wire Size | 1 x 0.34 mm² to 1 mm² |
| Net Weight | 0.111 kg |
| Packaging Material | Recycled cardboard (minimum 70%, 50% in US) |
| Take-back Program | Not included |
| Compliance | RoHS compliant |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov |
