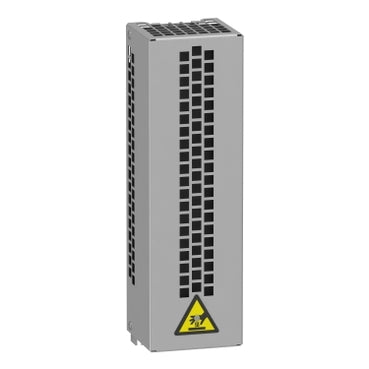

Schneider Braking resistor, 60ohms, 0.16kW Part number VW3A7731

This braking resistor provides a resistive load of 60 ohms rated at 0.16kW, used to dissipate excess energy generated during motor deceleration in variable speed drive applications. It is housed in an IP20 enclosure suitable for use within control panels, and is rated for operation across a temperature range of 0 to 50°C. The unit measures 105mm wide, 100mm deep and 345mm high, allowing it to be fitted alongside associated drive equipment within a panel build.

Key specifications

• IP rating: IP20
• Operating temperature: 0…50 °C
