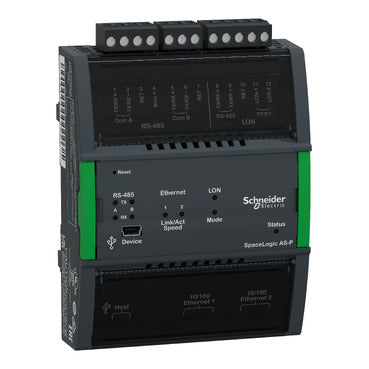

Schneider AS-P SmartX Controller, 2 x RS-485, 2 x10/100 Ethernet Part number SXWASPXXX10001

The AS-P is a SmartX building automation controller from the EcoStruxure Building Operation series, fitted with two RS-485 serial links and two 10/100 Ethernet ports for network connectivity. It supports BACnet/IP, BACnet MS/TP, Modbus TCP and Serial, and LonWorks TP/FT-10, allowing it to manage up to 464 I/O across 29...
Vendor: Schneider Electric
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

The AS-P is a SmartX building automation controller from the EcoStruxure Building Operation series, fitted with two RS-485 serial links and two 10/100 Ethernet ports for network connectivity. It supports BACnet/IP, BACnet MS/TP, Modbus TCP and Serial, and LonWorks TP/FT-10, allowing it to manage up to 464 I/O across 29 modules within a building control system. Housed in an ABS/PC enclosure rated IP20 and designed for DIN rail mounting, it runs on a 24 V DC supply and is suited to installation within control panels for building services applications.

Key specifications

  • Operating temperature: 0 to 50 °C
  • Dimensions: 114 mm x 90 mm x 64 mm
  • Material: ABS/PC
Specifications
Specifications
x

SpaceLogic Automation Server AS-P – 2 RS-485 Ports, 2 10/100 Ethernet Ports, LonWorks

Product Overview

Part NumberSXWASPXXX10001
Device Short NameAS-P
Product TypeController
SeriesEcoStruxure Building Operation
Mounting SupportDIN Rail
ProcessorSpear 320s
Power Supply24 V DC
Power Consumption10 W
Memory512 MB RAM, 4 GB Flash
MaterialABS/PC
Flame RetardanceUL94V0-5VB
IP Degree of ProtectionIP20
Weight321 g
Dimensions (H x W x D)114 mm x 90 mm x 64 mm

Input/Output Specifications

I/O Limit Processor Capacity464 I/O, 29 modules

Communication & Connectivity

Communication ServicesSNMP network management, SMTP/SMTPS email notification, Modbus TCP client/server
Communication ProtocolsBACnet/IP, BACnet MS/TP, Modbus TCP & Serial, LonWorks TP/FT-10
Integrated Connection TypesUSB 2.0 Type A, USB Mini-B, Ethernet RJ45, Serial Link RS485
Number of Ethernet Ports2
Web ServicesTLS 1.0, HTTP/HTTPS Server, Programmable Scripts (Alarm Summaries, Report Management)

Environmental Specifications

Operating Temperature0 to 50 °C
Storage Temperature-20 to 70 °C
Relative Humidity0–95% Non-Condensing
Carbon Footprint (Total Lifecycle)133 kg CO₂ eq
PackagingMade with Minimum 70% Recycled Cardboard
Take-Back ProgramNot Included

Certifications & Standards

CertificationsBTL, CE, cULus, FCC Part 15 Class B, ICES-003
StandardsUL 94, UL 916, FCC CFR 47 Part 15
RoHS ComplianceCompliant
REACH RegulationDeclaration According to EU REACH Regulation Article 33
China RoHS RegulationPVC Free
