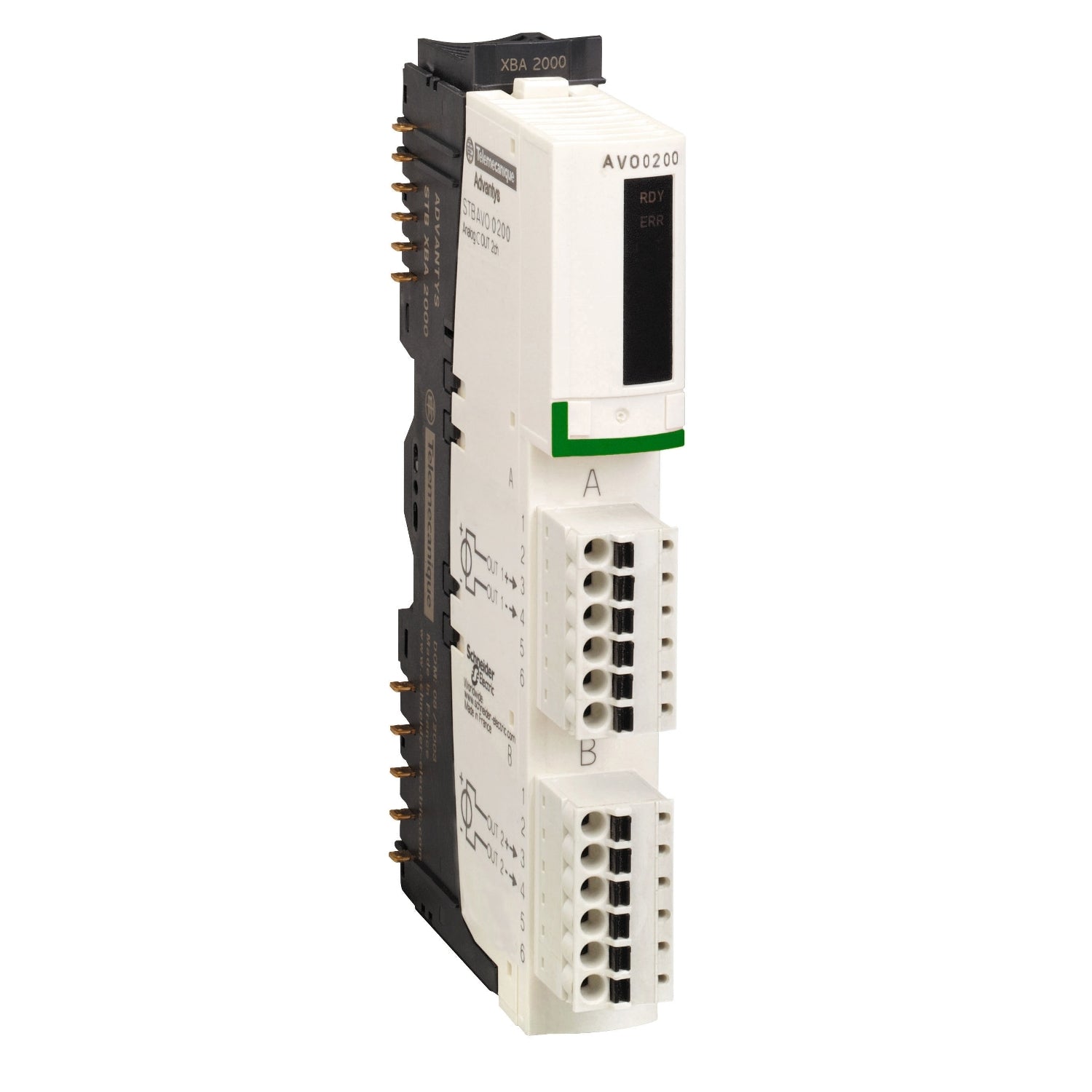

Schneider Analog output kit, 15 bits + sign, 2O, 10V Part number STBAVO0200K

This analog output kit provides two outputs at 15 bits plus sign resolution, with a 10V output range. It operates from a 24V DC supply and draws 265 mA at 5V DC from the logic bus, and carries an IP20 rating conforming to IEC 61131-2 class 1. Suitable for operation in ambient temperatures between -25°C and 75°C, it is intended for installation within control panels as part of a modular automation system.

Key specifications

• IP rating: IP20 conforming to IEC 61131-2 class 1
• Operating temperature: -25…75 °C (without)
