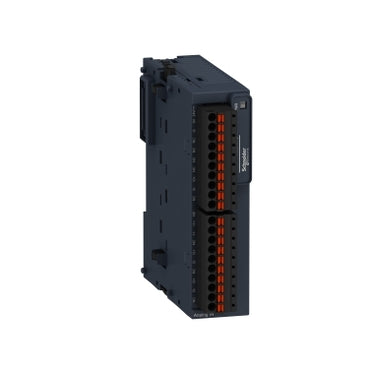

Schneider Analog input module, 4 inputs, spring, 24VDC

This analog input module is designed for use in automation systems, offering 4 channels for voltage or current signals. It features high-performance data acquisition with a compact form factor, ensuring integration into tight spaces and precise measurement for industrial applications.
Vendor: Schneider Electric
SKU: TM3AI4G
Availability: In stock
Product type: Control Panel
Please hurry! Only 1 left in stock
Description
Description
x
This analog input module is designed for use in automation systems, offering 4 channels for voltage or current signals. It features high-performance data acquisition with a compact form factor, ensuring integration into tight spaces and precise measurement for industrial applications.
Specifications
Specifications
x
IP RatingIP20
Compliance/CertificationsCE / cULus / cULus HazLoc / EAC / IEC 61131-2 / RCM / UKCA
Temperature: Operating-10°C to 35 °C vertical installation / -10°C to 55 °C horizontal installation
Part Depth (mm)70mm
Part Width (mm)23.6mm
Part Height (mm)90mm
Weight (g)100g
Packaging size / unit1 / 9 / 288 pc(s)
Supply Voltage24 VDC
Mounting TypeTop hat type TH35-15 rail conforming to IEC 60715 / Top hat type TH35-7.5 rail conforming to IEC 60715 / plate or panel with fixing kit
Current Consumption35 mA at 5 VDC via bus connector no load
Documents
Documents
x
Download Datasheet
