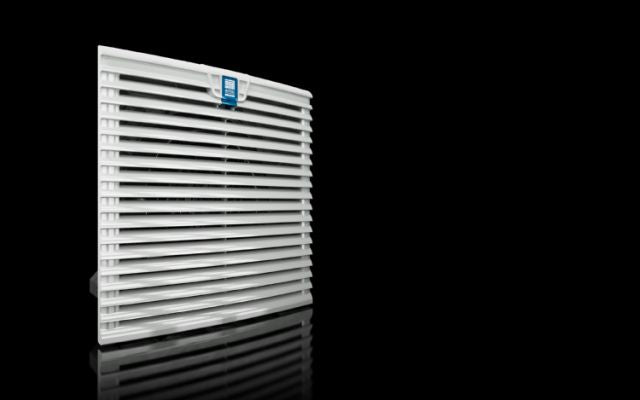

Rittal SK Fan and filter unit, 24VDC, 255 x 255 x 25mm

This fan-and-filter unit with diagonal fan technology is powered by a DC motor, offering a maximum air throughput of 225 m³/h. It ensures stable pressure and even airflow, providing reliable cooling for industrial enclosures. The unit includes a chopped-fiber filter mat and offers IP54 protection. It operates at a rated...
Vendor: Rittal
SKU: 3241.124
Availability: In stock
Product type: Control Panel
Please hurry! Only 2 left in stock
Description
Description
x
This fan-and-filter unit with diagonal fan technology is powered by a DC motor, offering a maximum air throughput of 225 m³/h. It ensures stable pressure and even airflow, providing reliable cooling for industrial enclosures. The unit includes a chopped-fiber filter mat and offers IP54 protection. It operates at a rated voltage of 24 V DC and consumes 19 W of power.
Specifications
Specifications
x
IP RatingIP54 with chopped-fbre flter/pleated flter IP55 with pleated flter and absorber mat IP56 with chopped-fbre flter/pleated flter and hose-proof hood
Tariff No84145915
Country of OriginGermany
Compliance/CertificationsCSA / Declaration of conformity / Declaration of conformity UK / FTTA UR + C-UR (recognized) / UL + C-UL
Temperature: Operating-30°C to 55°C
Part Depth (mm)107mm
Part Width (mm)255mm
Part Height (mm)255mm
Weight (g)2 040g
Packaging size / unit1 pc(s)
Rated Operating Voltage24 VDC
Current Rating / Rated Current0.78 A DC
Power Consumption17 W DC
ColourLight Grey
RAL CodeRAL 7035
Documents
Documents
x
Download Datasheet
