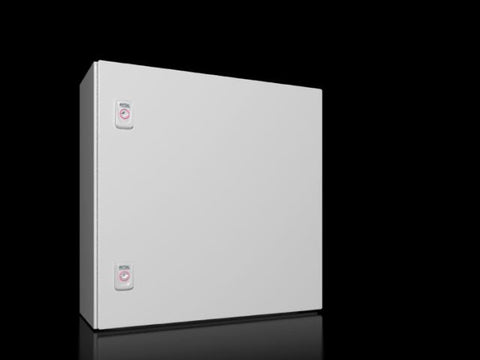

Rittal AX Compact enclosure, sheet steel, 500x500x210mm

Product Overview

AX 1050.000 is a compact sheet steel enclosure designed for demanding industrial applications requiring robust protection and versatile mounting options. This single-door wall-mounted enclosure features high-quality sheet steel construction with integrated mounting plate and innovative design elements that enable easy installation and maintenance.

Key Features:

• Sheet Steel Construction: High-quality sheet steel for excellent durability and corrosion resistance
• Superior Protection: IP 66 and multiple NEMA ratings 1, 12, 4 plus UL Type ratings
• Impact Resistance: IK10 mechanical protection rating for high durability
• Gland Plate: Removable gland plate in the roof for easy cable entry
• All-Round Sealing: Continuous foam-in-place polyurethane gasket on door for reliable environmental protection
• Reversible Hinges: Right-hand hinge swappable to left with 130° opening angle per VDI
• Secure Locking: 3 mm double-bit lock insert with safety catch compliant with DIN 43668
• QR Code Identification: Printed on body, cover and rating plate for easy product identification

Technical Specifications:

• Article Number: 1050000
• Dimensions (W x H x D): 380 mm x 380 mm x 210 mm
• Mounting Plate Dimensions: 315 mm x 315 mm
• Material: Sheet steel
• Material Thickness - Enclosure: 1.5 mm
• Material Thickness - Door: 1.5 mm
• Mounting Plate Thickness: 2 mm
• Surface Finish: Powder-coated RAL 7035 light grey
• Lock Type: 3 mm double-bit lock insert
• Net Weight: 9.9 kg
• EAN: 4028177844568

Compliance & Certifications:

• Protection Rating: IP 66 according to IEC 60529
• NEMA Ratings: NEMA 1, 12, 4
• UL Type Ratings: Type 1, 12, 4 (UL 50E)
• Impact Protection: IK10
• Standards Compliance: UL 508A Industrial Control Panels, CSA C22.2 No. 94.1/94.2 Enclosures for Electrical Equipment
• ETIM 9: EC002708
• ECLASS 8.0: 27-18-01-01

Applications:

Essential for industrial applications requiring robust protection with corrosion-resistant sheet steel and versatile mounting options. Ideal for automation systems, control panels, power distribution units, machine control systems, telecommunications equipment, industrial IoT devices, process control systems, and motor control centers, and any application where environmental protection, durability, and ease of installation are critical
