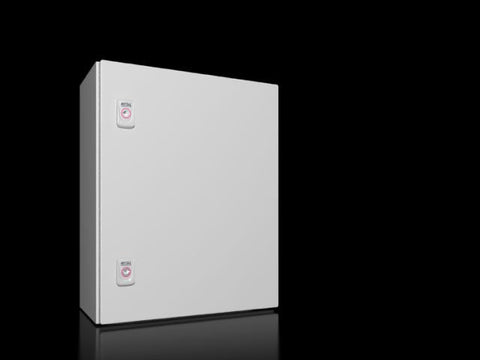

Rittal AX Compact enclosure, sheet steel, 400x500x210mm

Product Overview

The AX 1045.000 is a medium-sized sheet steel basic enclosure designed for demanding industrial applications requiring maximum interior installation flexibility and system configuration options. This single-door compact enclosure features integral enclosure locators on a 25mm system pitch pattern, enabling extensive configuration and retrofitting without drilling while maintaining protection category ratings, with enhanced security through dual locking.

Key Features:

• Integral Locator System: Patented 25mm system pitch pattern enabling extensive configuration without drilling
• Superior Protection: IP 66 and multiple NEMA ratings (1, 3R, 4, 12) plus UL Type ratings
• Impact Resistance: IK10 mechanical protection rating for maximum durability
• Triple Surface Treatment: Nanoceramic coating, electrophoretic dipcoat priming, and powder coating for optimum corrosion protection
• All-Round Sealing: Foamed-in PU seal on door for reliable environmental protection
• Reversible Hinges: Right-hand hinge swappable to left with 130° opening angle (retrofittable to 180°)
• Dual Locking System: Two cam locks with 3mm double-bit insert for enhanced security
• Perforated Door Strip: Vertical strips on both sides with PE conductor connection
• QR Code Identification: Printed on body, cover and rating plate for easy product identification

Technical Specifications:

• Article Number: AX 1045.000
• Dimensions (W x H x D): 400 mm x 500 mm x 210 mm
• Mounting Plate Dimensions: 350 mm x 475 mm
• Material: Sheet steel with RAL 7035 finish
• Material Thickness - Enclosure: 1.25 mm
• Material Thickness - Door: 1.5 mm
• Mounting Plate Thickness: 2 mm
• Surface Finish: Textured powder coating RAL 7035
• Lock Type: Two cam locks with 3mm double-bit insert
• Gland Plate: Size 2, quantity 1
• Net Weight: 12 kg
• EAN: 4028177813403

Compliance & Certifications:

• Protection Rating: IP 66 according to IEC 60529
• NEMA Ratings: NEMA 1, 3R, 4, 12
• UL Type Ratings: Type 1, 3R, 4, 12 (UL 50E)
• Impact Protection: IK10
• Standards Compliance: DIN 43668 (lock insert), VDI (opening angle)
• ETIM 9: EC000261
• ECLASS 8.0: 27180101
• PCF per pack: 50.5 kg CO2 eq (Category B)

Applications:

Essential for medium-sized industrial applications requiring maximum interior installation flexibility with robust environmental protection and enhanced security. Ideal for control systems, automation equipment, electrical distribution, instrumentation protection, and any application where modular system expansion, easy retrofitting, enhanced security with dual locking, and IP 66 protection are critical requirements in mid-capacity installations.
