Description

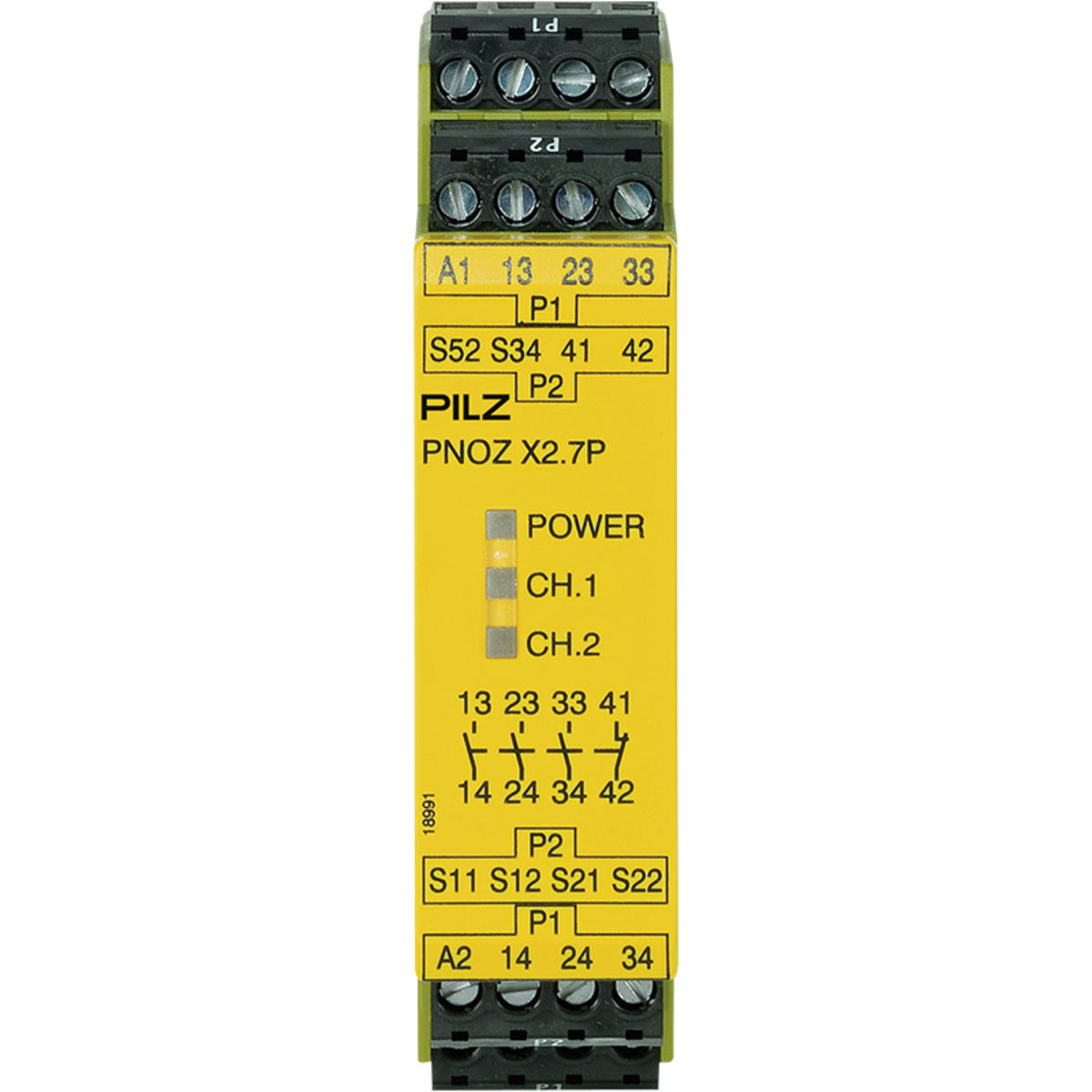

xThis safety relay provides 3 normally open and 1 normally closed contact configuration, rated for a current of 3-6A, and accepts a supply voltage of 24-240V AC/DC. It is housed in an ABS UL 94 V0 enclosure with AgCuNi contact material, and terminates via screw-type, plug-in terminals. Its compact dimensions (22.5mm width, 94mm height, 121mm depth) suit panel mounting within industrial automation and machine safety circuits.
Key specifications
- Rated current: 3 - 6 A
Specifications
x| Global Compliance / Compliance with Standards | CCC / CE / cULus Listed / EAC (Eurasian) / EN 60068-2-6 / EN 60068-2-78 / EN 60947-1 / EN 60947-4-1 / EN 60947-5-1 / EN 61000-6-2 / EN 61000-6-4 / EN 61326-3-1 / TÜV / UKCA / WEE |
| Material: Housing Material | ABS UL 94 V0 / AgCuNi |
| Power Consumption | 2.5 W (DC) / 4.5 VA (AC) |
| Part Depth (mm) | 121mm |
| Part Width (mm) | 22.5mm |
| Part Height (mm) | 94mm |
| Weight (g) | 200g |
| Connection Terminal | Screw terminal |
| Terminal Style | Plug-in |
| Supply Voltage | 24 - 240 V |
| Type of Voltage | AC / DC |
| Voltage Range | 230 V - 250 VAC G.U. (same polarity) |
| Current Rating | 3 - 6 A |
