Description

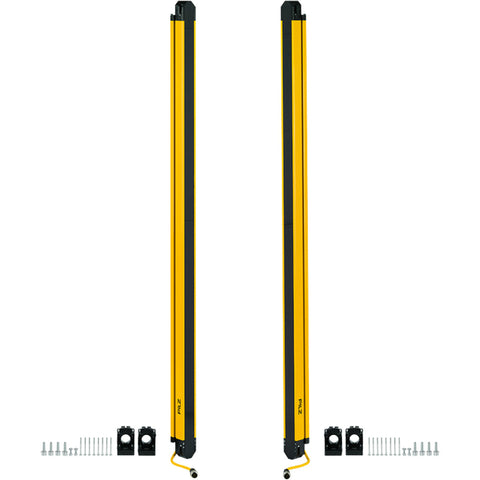

xThe PSEN opII4H-s-30-120 is a safety light curtain with a protection field of 1200mm, used to safeguard access to hazardous areas on automated machinery and plant. It has a housing constructed from aluminium, PC and zinc, giving it a compact cross-section of 35mm width and 40mm depth for mounting alongside guarded openings. The device operates over a range of 0.2 to 18 m and is powered from a 24 V DC supply, making it suitable for typical industrial control panel and machine safety circuits.
Specifications
x| Global Compliance / Compliance with Standards | CE / cULus Listed / EAC (Eurasian) / EN 60068-2-6 / IEC 61496-1 / KCs / TÜV / UKCA / WEE |
| Material: Housing Material | Aluminium / PC / Zinc |
| Operating range | 0.2 - 18 m |
| Part Depth (mm) | 40mm |
| Part Width (mm) | 35mm |
| Part Length (mm) | 50 000mm (cable length) |
| Part Height (mm) | 1204mm |
| Weight (g) | 3440g |
| Supply Voltage | 24 - 24 V |
| Type of Voltage | DC |
