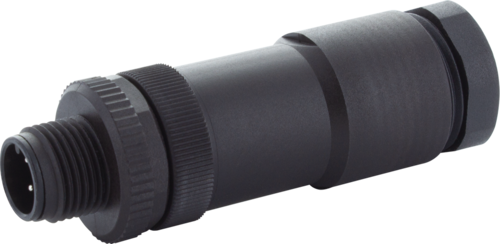

Murr Y-connector, M12 male 0°, screw, 5-pole

Product Overview

The Murrelektronik M12 male duo field-wireable connector features innovative Y-connector design with reliable screw terminal technology for industrial sensor and actuator systems requiring dual cable termination with plug configuration. This A-coded connector accommodates 5-pole configurations with wire cross-sections up to 0.75mm² and dual cable diameter ranges from 2.1-3mm and 4-5mm, providing versatile plug connections in industrial automation environments where field assembly with multiple cable sizes is essential.

Key Features

• M12 male 0° straight connector with A-coding and 5-pole configuration
• Innovative Y-connector (duo) design for dual cable termination
• Reliable screw terminal technology for secure wire connections
• Wire cross-section compatibility: up to 0.75mm²
• Dual cable diameter ranges: 2.1-3mm and 4-5mm
• Screw terminals designed for reliable wire contact and retention
• Robust strain relief system for dual cable protection
• Operating voltage suitable for industrial signal applications
• Durable plastic housing with superior chemical and oil resistance
• Field-wireable design for on-site installation flexibility

Technical Specifications

• Article Number: 7000-12801-0000000
• Connector Type: M12 male 0° straight, A-coded, Y-connector, field-wireable

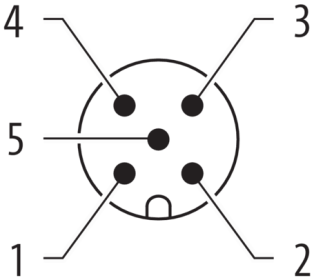

• Pole Configuration: 5-pole
• Connection Method: Screw terminals
• Wire Cross-Section: Maximum 0.75mm²
• Cable Diameter Range 1: 2.1-3mm
• Cable Diameter Range 2: 4-5mm
• Operating Voltage: Industrial signal voltage range
• Operating Temperature: Standard industrial range
• Protection Rating: IP67 when properly assembled
• Housing Material: High-resistance plastic with excellent chemical resistance

Applications

• Dual sensor/actuator connections requiring 5-pole signal distribution from single M12 male plug
• Industrial automation systems requiring Y-distribution with different cable sizes
• Signal splitting applications where one M12 connection feeds two separate cables
• Field installation requiring dual cable termination with varying cable diameters
• Maintenance and repair applications requiring versatile dual cable connections
• Control systems needing signal distribution with flexible cable size accommodation
• Process control applications requiring dual signal paths from single connection point
• Harsh industrial environments requiring robust dual cable connections

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions with dual cable capability

Benefits

• Unique Y-connector design enables dual cable connection from single M12 male plug
• Accommodates two different cable diameter ranges for maximum flexibility
• 5-pole configuration provides comprehensive signal distribution capability
• Field-wireable configuration eliminates need for pre-assembled Y-cordsets
• A-coding ensures proper mating with compatible female connectors
• Excellent resistance against chemicals, oils, lubricants, and aggressive media
• Robust plastic housing withstands demanding industrial environments
• Cost-effective solution for dual cable field termination requirements
• Space-saving design reduces connection points and potential failure modes
• Easy field installation with standard screw terminal connections

Downloads:

• Product Data Sheet
