Murr T-Coupler male/female, straight, 5-pole, shielded

Product Overview

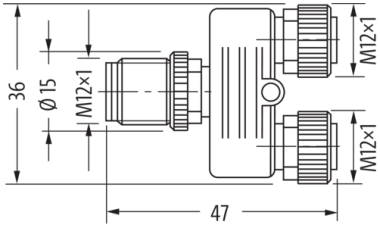

This M12 shielded T-coupler adapter (SKU: 7000-42141-0000000) features one male M12 straight connector branching to two female M12 straight connectors, all with A-coding and full 5-pole configuration with integrated shielding for superior EMI protection in industrial automation applications. The parallel circuit design provides reliable signal distribution with enhanced noise immunity.

Connector Configuration:

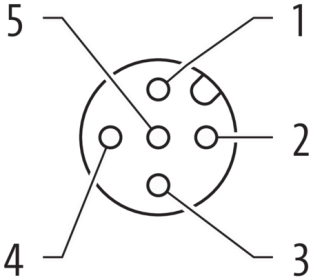

• Input: M12, 5-pole, 0° straight, A-coded (male)

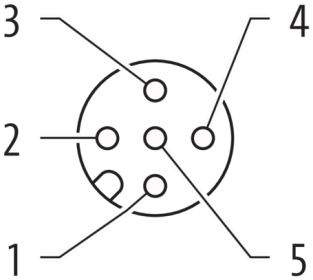

• Output: 2x M12, 5-pole, 0° straight, A-coded (female)
• Thread: M12 x 1mm, self-securing
• Protection: IP67 when mated
• Housing: Impact-resistant plastic
• Shielding: Integrated EMI protection

T-Coupler Design:

• Configuration: One M12 input to two M12 outputs
• Topology: Parallel circuit distribution
• Signal splitting: Full 5-pole shielded connectivity
• EMI Protection: Integrated shielding for noise immunity
• Network reliability: Enhanced signal integrity

Electrical Characteristics:

• Operating voltage: 60V AC/DC max.
• Current rating: 4A max. per contact
• Conductor: 5-contact input / 2x 5-contact output
• Shielding: Electromagnetic interference protection
• Contact material: Nickel-plated contacts

Environmental Performance:

• Operating temperature: -25°C to +85°C
• Protection rating: IP67 (when mated)
• Chemical resistance: Good resistance to chemicals and oils
• EMI immunity: Enhanced protection against electromagnetic interference

Material & Construction:

• Housing: Impact-resistant plastic construction
• Contact plating: Nickel-plated for corrosion resistance
• Shielding: Integrated EMI protection throughout signal path
• Material compliance: RoHS compliant

Certifications & Compliance:

• IP67 protection rating
• A-coded for standard M12 compatibility
• Threaded locking mechanism
• RoHS Certificate of Compliance available

Applications

Designed for industrial automation environments requiring high-integrity signal distribution with EMI protection. Ideal for electrically noisy environments such as manufacturing floors with heavy machinery, welding operations, and motor drives. Perfect for sensor and actuator networks where signal integrity and noise immunity are critical for reliable operation.

Download existing graphical data for this product:

Product Datasheet
