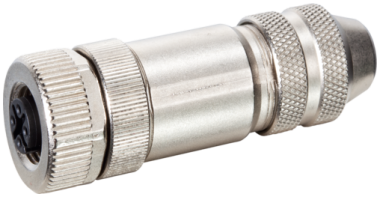

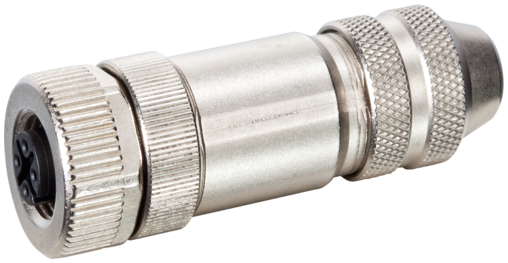

Murr Screw terminal, M12 female 0°, B-code, cable Ø 6-8mm

Product Overview

The Murrelektronik M12 female straight field-wireable connector features advanced shielded screw terminal technology specifically designed for PROFIBUS industrial data communication applications requiring secure field termination with socket configuration. This B-coded connector accommodates 5-pole configurations with wire cross-sections up to 0.75mm² and cable diameters from 6 to 8mm, providing robust shielded socket connections in industrial automation environments where PROFIBUS protocol integrity and electromagnetic interference protection are essential.

Key Features

• M12 female 0° straight connector with B-coding and 5-pole configuration
• Specifically designed for PROFIBUS communication protocol
• Integrated shielding for superior electromagnetic interference protection
• Reliable screw terminal technology for secure wire connections
• Wire cross-section compatibility: up to 0.75mm²
• Cable diameter range: 6 to 8mm
• Screw terminals designed for reliable wire contact and retention
• Robust strain relief system for cable protection
• IP67 protection rating when properly assembled
• Operating voltage suitable for PROFIBUS data applications
• Durable plastic housing with superior chemical and oil resistance
• Field-wireable design for on-site installation flexibility

Technical Specifications

• Article Number: 7000-14021-0000000
• Connector Type: M12 female 0° straight, B-coded, field-wireable

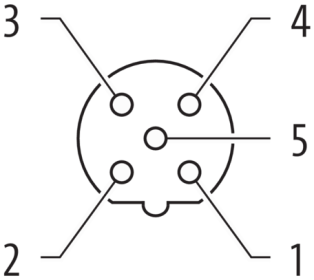

• Pole Configuration: 5-pole
• Communication Protocol: PROFIBUS compatible
• Connection Method: Shielded screw terminals
• Wire Cross-Section: Maximum 0.75mm²
• Cable Diameter: 6 to 8mm
• Shielding: Integrated electromagnetic interference protection
• Operating Voltage: Industrial data communication voltage range
• Operating Temperature: Standard industrial range
• Protection Rating: IP67 when properly assembled
• Housing Material: High-resistance plastic with excellent chemical resistance

Applications

• PROFIBUS fieldbus network socket connections requiring EMI protection
• Industrial automation systems with PROFIBUS communication requirements
• Process control systems requiring reliable shielded PROFIBUS socket connections
• Manufacturing automation networks with electromagnetic interference concerns
• Control panel socket connections requiring PROFIBUS data integrity and noise immunity
• Field installation of PROFIBUS socket connections with shielding requirements
• Applications where pre-assembled PROFIBUS shielded female cordsets are impractical
• PROFIBUS data receiving systems in electrically noisy environments

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Communication Standards: PROFIBUS protocol compatible
• EMI Standards: Integrated shielding for electromagnetic compatibility
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial PROFIBUS communication conditions

Benefits

• B-coded 5-pole socket configuration ensures proper PROFIBUS protocol compatibility
• Integrated shielding provides superior EMI protection for PROFIBUS signal integrity
• Specialized for PROFIBUS communication requirements in industrial environments
• Enhanced cable diameter range accommodates larger industrial PROFIBUS cables up to 8mm
• Field-wireable configuration eliminates need for pre-assembled PROFIBUS shielded female cordsets
• Excellent resistance against chemicals, oils, lubricants, and aggressive media
• Robust plastic housing withstands demanding industrial environments
• IP67 protection ensures reliable performance in harsh environmental conditions
• Cost-effective solution for PROFIBUS shielded field socket termination requirements
• Easy field installation with standard screw terminal connections
• Superior PROFIBUS data reception performance in electrically noisy environments
• Reliable long-term performance for critical PROFIBUS communication applications
• 5-pole configuration supports comprehensive PROFIBUS data transmission requirements

Downloads:

• Product Data Sheet
