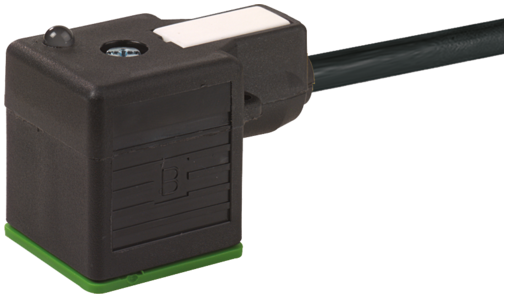

Murr MSUD valve plug with cable, 5m, bridged PE

Product Overview

The Murrelektronik MSUD valve plug Form A provides reliable power connection for solenoid valves and pneumatic applications with superior cable durability. This 18mm connector features integrated LED status indication and suppression circuitry with a 5-meter PUR cable, delivering robust connectivity for 24V AC/DC valve control applications with enhanced chemical resistance and visual feedback.

Key Features

• MSUD Form A 18mm valve plug connector
• Integrated LED indicator for visual status monitoring
• Built-in suppression circuitry for valve protection
• 5-meter PUR cable with drag chain compatibility
• 3x0.75mm² conductors for reliable power transmission
• UL/CSA certification for North American markets
• Black cable jacket for professional appearance

Technical Specifications

• Article Number: 7000-18021-6360500

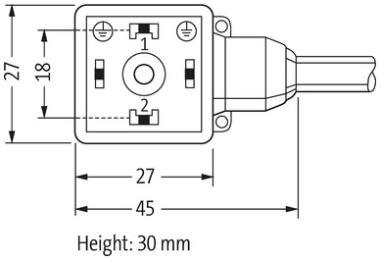

• Connector Type: MSUD valve plug Form A, 18mm
• Cable Length: 5 meters (16.4 feet)
• Conductor Specification: 3x0.75mm² PUR cable
• Voltage Rating: 24V AC ±20% / DC ±25%

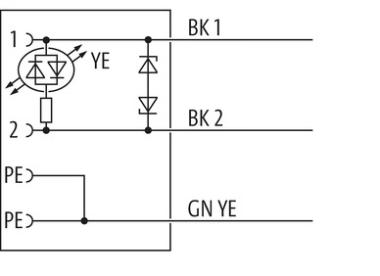

• LED Function: Status indication with integrated suppression
• Cable Type: PUR (Polyurethane), black with drag chain compatibility
• Operating Temperature: Enhanced temperature range for PUR construction
• Wire Gauge: 3 x 0.75mm² (approximately #18 AWG)

Applications

• Solenoid valve power connections requiring superior cable durability
• Dynamic applications with repetitive motion requiring drag chain compatibility
• Industrial automation valve networks in demanding environments
• Process control applications with valve status verification
• Manufacturing equipment requiring reliable valve connectivity with chemical resistance
• Applications requiring enhanced cable performance in harsh conditions

Standards and Compliance

• Certification: UL/CSA approved for industrial applications
• Quality Standards: German engineering and manufacturing
• Environmental Protection: Enhanced environmental protection with PUR cable construction

Benefits

• Pre-assembled construction eliminates field termination errors
• LED indicator provides immediate visual status feedback
• Integrated suppression protects valve coils and control circuits
• PUR cable construction provides superior chemical and oil resistance
• Drag chain compatibility ensures reliable performance in dynamic applications
• Black cable color enhances professional appearance and cable identification
• Plastic housing provides good resistance against chemicals and oils
