Murr MSUD valve plug CI-9.4mm with cable, 10, 230VAC/DC

Product Overview

MSUD valve plug with open-ended cable (SKU: 7000-94061-6361000) designed for direct wiring connections to Form CI (9.4mm) pneumatic and hydraulic valves. This 10-meter cable assembly features a robust PUR jacket construction with drag chain compatibility for industrial valve control applications requiring field-customizable wiring connections.

Key Features

• Form CI (9.4mm) MSUD valve plug connector
• 10-meter PUR cable with open-ended wires for field termination
• 3-pole configuration with 0.75mm² wire cross-section
• Gray PUR jacket for enhanced durability and chemical resistance
• UL/CSA certified construction for global applications
• Drag chain compatible for dynamic valve applications
• Pre-wired valve plug eliminates field assembly requirements
• Robust plastic housing with excellent chemical and oil resistance

Technical Specifications

• Connector: MSUD valve plug Form CI (9.4mm)
• Cable Length: 10 meters
• Wire Configuration: 3 x 0.75mm² stranded copper
• Cable Type: PUR jacket, gray color
• Pole Count: 3-pole
• Operating Voltage: 0-230V AC/DC max
• Wire Termination: Open-ended for field wiring
• Operating Temperature: -40°C to +80°C
• Protection Rating: IP65/IP67 (valve plug when mated)
• Bend Radius: 5 x cable diameter (static), 7.5 x cable diameter (dynamic)

Applications

• Pneumatic valve control in industrial automation
• Hydraulic valve connections requiring custom field wiring
• Process control valve interfacing with control panels
• Machine automation valve control systems
• Packaging and material handling valve applications
• Factory automation requiring flexible wiring solutions
• Retrofit applications where standard cables don't meet requirements
• Custom control panel integration with valve systems

Compliance & Standards

• UL/CSA certified (cURus) construction
• Form CI (9.4mm) valve connection standard
• Drag chain rated for 10 million bending cycles
• Chemical and oil resistant PUR construction
• UV resistant per DIN EN ISO 4892-2 A
• Flame resistant per UL 1581 and IEC 60332-2-2
• Halogen-free construction
• RoHS compliant materials

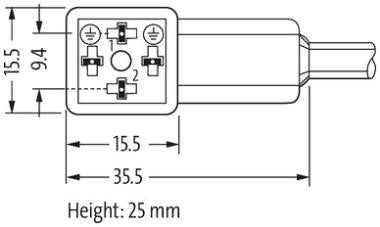

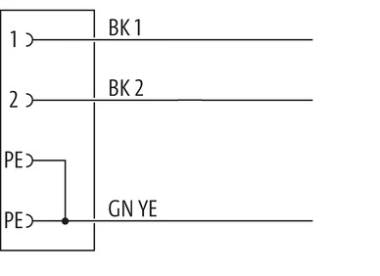

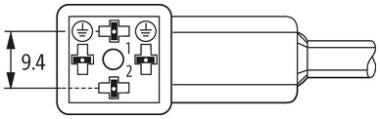

Download existing graphical data for this product:

Product Datasheet
