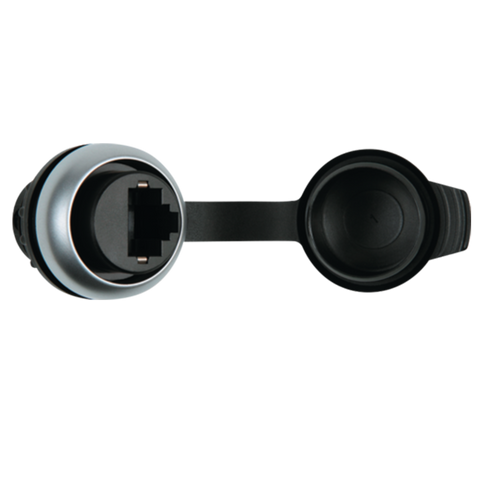

Murr MSDD Installation socket RJ45 Cat5e, female/female

Product Overview

The MSDD PASS-THROUGH RJ45 CAT5e provides professional Ethernet connectivity with female/female configuration in a sleek silver design. This industrial-grade pass-through connector offers CAT5e transmission performance with IP65 environmental protection, designed for permanent installation in control cabinets and industrial automation applications requiring reliable Ethernet connectivity.

Key Features

• RJ45 CAT5e female/female pass-through configuration
• Professional silver design for industrial applications
• IP65 environmental protection rating
• 8-pole CAT5e transmission performance
• Industrial-grade metal construction
• Pass-through design for permanent installation

Technical Specifications

• Series: MSDD Pass-through Interfaces
• Category: Ethernet Pass-through Connectors
• Article Number: 4000-73000-0010000
• Connector Type: RJ45 pass-through

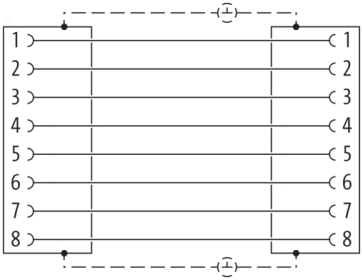

• Configuration: Female/female
• Design: Silver finish

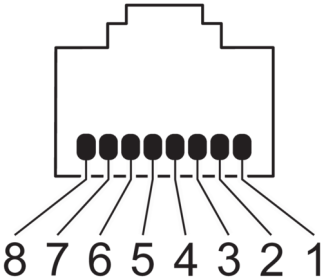

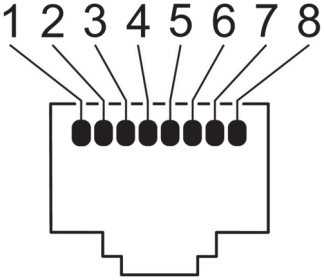

• Poles: 8-pole configuration

Transmission Characteristics

• Category: CAT5e performance specification
• Frequency Range: Up to 100 MHz (CAT5e standard)
• Data Rate: Supports Fast Ethernet applications
• Connector Type: RJ45 8-pole metal construction
• Signal Integrity: Professional-grade signal transmission
• Standards Compliance: CAT5e specifications

Installation Details

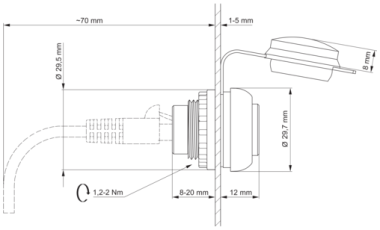

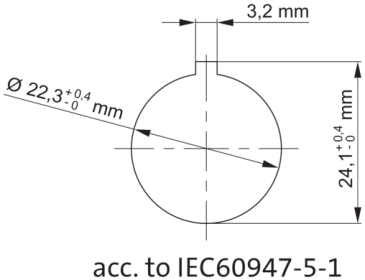

• Mounting: Panel mount pass-through installation
• Protection Rating: IP65 environmental protection
• Current Rating: 1.5 A maximum
• Voltage Rating: 24 VAC capability
• Assembly: Ready-to-install pass-through connector

Environmental Specifications

• Protection Rating: IP65 for harsh industrial environments
• Construction: Industrial-grade metal housing
• Design Finish: Professional silver appearance
• Durability: Designed for permanent installation applications
• Operating Conditions: Standard industrial temperature ranges

Applications

• Industrial Ethernet network pass-through connections
• Control cabinet Ethernet connectivity
• Automation equipment network interfaces
• Machine control Ethernet connections
• Manufacturing equipment network pass-through
• Process control Ethernet installations
• Field device network connectivity

Standards and Compliance

• Ethernet Standards: CAT5e performance compliance
• Protection Rating: IP65 environmental protection
• Electrical Standards: 24 VAC, 1.5 A maximum ratings
• Quality Standards: Murrelektronik industrial quality standards
• Safety Compliance: Industrial automation safety requirements

Compatibility

• Compatible with CAT5e Ethernet cable assemblies
• Standard RJ45 Ethernet devices and equipment
• Industrial automation network systems
• Ethernet switches and network infrastructure
• Computer and control system network ports
• Standard Ethernet communication protocols

Design Features

• Professional Appearance: Silver finish for industrial applications
• Pass-through Design: Permanent installation capability
• Environmental Sealing: IP65 protection against harsh conditions
• Signal Quality: Maintains CAT5e transmission performance
• Durability: Industrial-grade construction for long-term reliability

Download existing graphical data for this product:

Product Specification Sheet
