Murr MSCON-C, female, solder connection, M23, 19-pole

Product Overview

The Murrelektronik MSCON-C field-wireable connector provides high-density connectivity for advanced industrial automation applications requiring on-site cable termination. This M23 female straight connector features a 19-pole configuration with solder connections, allowing flexible field installation with user-supplied cables for comprehensive signal transmission applications.

Key Features

• M23 female straight connector with 19-pole configuration
• Field-wireable design with solder connections for on-site installation
• MSCON-C series for high-density signal transmission
• Robust M23 housing for demanding industrial environments
• User-configurable cable length based on application requirements
• Professional solder termination for reliable connections
• Plastic housing construction with excellent chemical and oil resistance

Technical Specifications

• Article Number: 7000-23261-0000000

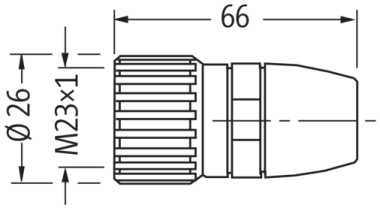

• Connector Type: M23 female straight (0°), field-wireable, MSCON-C

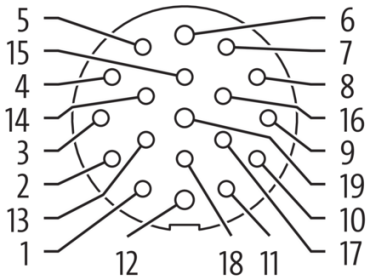

• Number of Poles: 19-pole configuration
• Connection Method: Solder connections
• Voltage Rating: Standard industrial signal voltages
• Protection Rating: IP67 when properly installed and mated
• Housing Material: Plastic with chemical and oil resistance
• Series: MSCON-C field-wireable connector

Applications

• Custom cable length high-density signal connections
• Industrial automation systems with M23 interface requirements
• Machine control applications requiring comprehensive signal transmission with field termination
• Process control equipment with multiple input/output requirements
• Distribution box connections requiring 19-pole connectivity
• Retrofit installations where pre-assembled cables are not suitable

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Environmental Protection: IP67 rating for industrial environments
• Material Standards: CFC-free, cadmium-free, silicone-free, lead-free construction

Benefits

• Field-wireable design reduces inventory requirements for multiple cable lengths
• 19-pole configuration provides comprehensive connectivity for complex applications
• Solder connections ensure reliable, permanent terminations
• M23 housing provides robust protection for demanding environments
• On-site termination capability reduces installation time and complexity
• Plastic housing provides good resistance against chemicals and oils

Downloads

• Product Data Sheet
