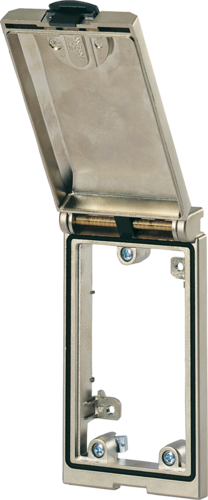

Murr Modlink MSDD Front panel frame, single, metal

Product Overview

The MODLINK MSDD FRAME SINGLE METAL provides a robust mounting solution for single insert configurations with professional matte nickel plated finish. This industrial-grade metal frame offers superior corrosion resistance and durability, designed to house various MODLINK MSDD inserts while maintaining IP65 protection when properly sealed in demanding industrial environments.

Key Features

• Single insert metal frame configuration
• Matte nickel plated finish for superior corrosion resistance
• Metal frame and lid construction
• Integrated spring-loaded lid mechanism
• 30° angle lid opening for easy access
• Lockable with 3mm double bit key
• Professional industrial appearance with premium finish

Technical Specifications

• Series: MODLINK MSDD Front Panel Interfaces
• Category: Frame
• Article Number: 4000-68113-0000000
• Frame Type: Single insert metal frame
• Material: Metal with matte nickel plating
• Color: Matte nickel finish
• Configuration: Single gang frame

Construction Details

• Frame Material: Metal with matte nickel plated finish
• Lid Material: Metal with matte nickel plated finish
• Surface Treatment: Matte nickel plating for enhanced durability
• Lid Mechanism: Integrated spring system
• Opening Angle: 30° automatic lid positioning
• Locking System: 3mm double bit key closure

Installation Details

• Panel Mounting: Front panel installation
• Insert Compatibility: Compatible with all MODLINK MSDD single inserts
• Protection Rating: IP65 when properly sealed with insert
• Assembly: Ready for insert installation
• Mounting Hardware: Included mounting components

Environmental Specifications

• Construction: Industrial-grade metal housing
• Finish: Corrosion-resistant matte nickel plating
• Durability: Enhanced protection in harsh industrial environments
• Protection: Superior weather and contamination resistance
• Operating Conditions: Extended industrial temperature ranges

Applications

• Industrial control cabinet front panel interfaces
• Machine control access panels requiring enhanced durability
• Automation equipment operator interfaces in harsh environments
• Manufacturing equipment service panels
• Process control diagnostic access in corrosive atmospheres
• Field service and maintenance interfaces
• Premium equipment identification and labeling surfaces

Standards and Compliance

• Protection Rating: IP65 capability with proper insert installation
• Material Standards: Industrial-grade metal construction
• Finish Standards: Matte nickel plating for enhanced corrosion resistance
• Quality Standards: Murrelektronik premium industrial quality standards
• Safety Compliance: Industrial automation safety requirements

Compatibility

• Compatible with all MODLINK MSDD single insert types
• Power inserts, data inserts, and combination inserts
• Various connector configurations and standards
• Custom laser engraving and labeling options
• Industrial control and automation systems
• Standard panel cutout dimensions

Design Features

• Service Access: Convenient access without opening cabinet door
• Labeling Surface: Premium surface ideal for system labels and branding
• Logo Area: Professional position for company identification
• Maintenance Friendly: Easy insert replacement and servicing
• Premium Appearance: High-quality matte nickel finish
