Murr M8 female 0° A-code / RJ45 male 0°, shielded, 4-pole, 5m Part number 7000-89901-7910500

Product Overview

M8 to RJ45 EtherCAT connection cable (SKU: 7000-89901-7910500) designed for connecting EtherCAT devices with M8 interfaces to standard Ethernet networks. This shielded data cable features M8 female straight connector to RJ45 male straight connector with specialized AWG26 conductors and green PUR jacket for industrial EtherCAT communication applications requiring reliable high-speed data transmission.

Key Features

• M8 female straight (0°) A-coded to RJ45 male straight (0°) configuration
• EtherCAT protocol optimized for industrial communication
• Shielded construction for EMI protection and signal integrity
• 5-meter cable length with drag chain compatibility
• Green PUR jacket for enhanced durability and identification
• AWG26 4-conductor configuration for high-speed data transmission
• UL/CSA certified construction for global applications
• Gold-plated contacts for reliable long-term performance

Technical Specifications

• Connector 1: M8 female straight (0°) A-coded, 4-pole

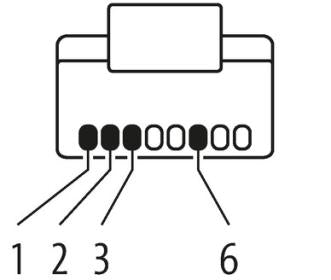

• Connector 2: RJ45 male straight (0°), 8P8C
• Cable Length: 5 meters
• Wire Configuration: 1 x 4 x AWG26 stranded copper
• Cable Type: PUR jacket, green color
• Shielding: Overall foil and braid shield
• Protocol: EtherCAT compatible
• Data Rate: Up to 100 Mbps
• Operating Temperature: -40°C to +80°C
• Protection Rating: IP67/IP68 (M8 connector when mated)
• Bend Radius: 5 x cable diameter (static), 7.5 x cable diameter (dynamic)

Applications

• EtherCAT network connections in industrial automation
• High-speed data transmission between M8 devices and Ethernet networks
• Industrial robotics communication systems
• Machine control and monitoring networks
• Factory floor data acquisition systems
• Process control EtherCAT installations
• Dynamic applications requiring frequent cable movement
• Automation systems requiring EMI-resistant data transmission

Compliance & Standards

• UL/CSA certified (cURus) construction
• EtherCAT protocol compliant
• IEC 61076-2-104 (M8) and IEC 60603-7 (RJ45) standards
• Drag chain rated for 10 million bending cycles
• Chemical and oil resistant PUR construction
• EMC compliant shielded design
• Halogen-free construction
• RoHS compliant materials

Download existing graphical data for this product:

Product Datasheet
