Murr M8 Adaptor on rear/ MSUD valve plug, 3-pole, 24VAC

Product Overview

M8 to MSUD valve plug adapter (SKU: 7000-88975-0000000) designed for connecting standard M8 sensor cables to Form C (8mm) MSUD valve connectors. This rear-mounted adapter features integrated LED status indication and suppressor diode for reliable valve control applications in industrial automation systems. The plastic housing provides excellent chemical resistance while maintaining compact installation dimensions.

Key Features

• M8 A-coded connector mounted on rear for cable connection
• Form C (8mm) MSUD valve plug interface

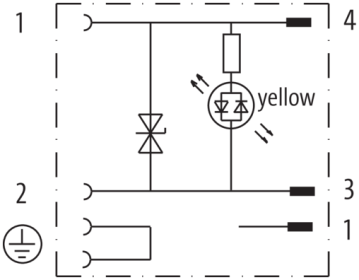

• Integrated LED status indicator for visual feedback
• Built-in suppressor diode for valve protection
• 3-pole configuration for standard valve applications
• Compact plastic housing with chemical resistance
• 24V AC ±20% / 24V DC ±25% operating voltage
• Rear-mounted M8 connector for space-efficient installation

Technical Specifications

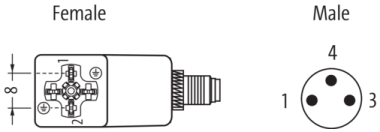

• Connector 1: M8 A-coded connector (rear-mounted)
• Connector 2: MSUD valve plug Form C (8mm)
• Pole Count: 3-pole
• Operating Voltage: 24V AC ±20% / 24V DC ±25%
• LED Indicator: Integrated status LED
• Protection: Suppressor diode included
• Housing Material: Plastic with chemical resistance
• Protection Rating: IP65/IP67 (when properly mated)
• Operating Temperature: -25°C to +70°C
• Contact Material: Gold-plated copper alloy

Applications

• Pneumatic valve control in automation systems
• Hydraulic valve applications requiring status indication
• Process control valve interfacing
• Machine automation valve connections
• Packaging and material handling valve control
• Industrial valve retrofitting and upgrades
• Factory automation valve monitoring systems

Compliance & Standards

• Form C (8mm) valve connection standard
• M8 A-coding prevents incorrect mating
• Chemical resistant plastic construction
• LED indication for operational status monitoring
• Suppressor diode protection against voltage spikes
• Industrial-grade construction for harsh environments

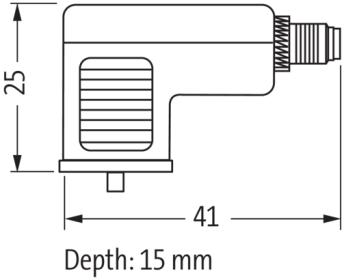

Download existing graphical data for this product:
