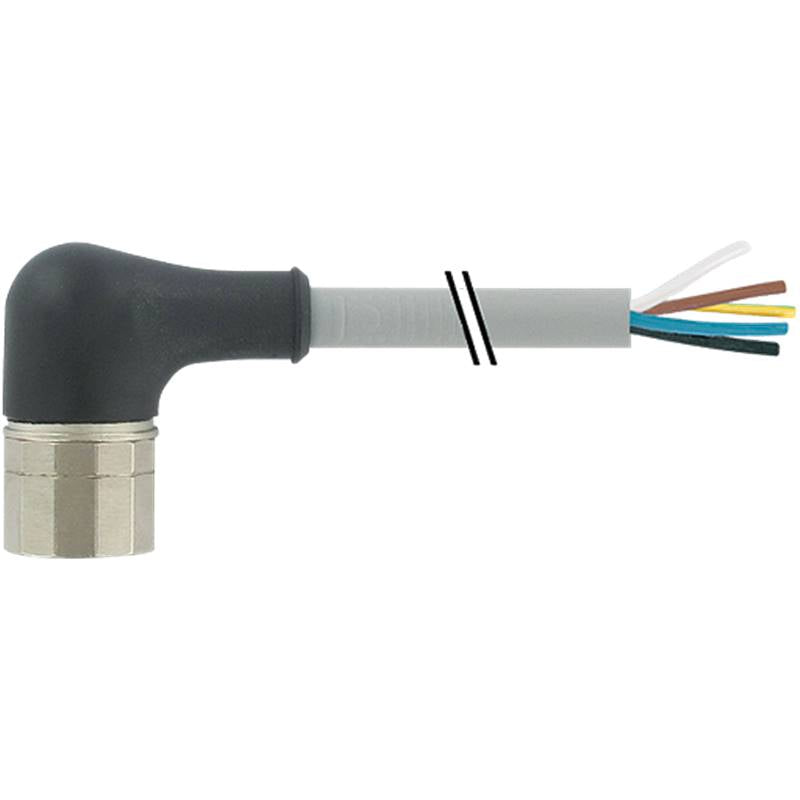

Murr M23 female 90° with cable, 19-pole, 10m

Product Overview

The Murrelektronik M23 female 90° angled connector provides space-saving high-density connectivity for extended reach industrial automation applications. This 19-pole connector features a specialized conductor configuration with a 10-meter PUR cable and open-ended wires, delivering robust right-angle connectivity optimized for 8-way distribution box applications with superior chemical resistance and drag chain compatibility over longer distances.

Key Features

• M23 female 90° angled connector with 19-pole configuration
• Space-saving right-angle design for panel-mounted and confined space applications
• Specialized conductor arrangement: 16x0.34mm² + 3x0.75mm² for versatile signal transmission
• Extended 10-meter PUR cable with drag chain compatibility
• Gray cable jacket for professional appearance
• Optimized for 8-way distribution box applications
• All 19 poles utilized for maximum connectivity

Technical Specifications

• Article Number: 7000-23351-3981000
• Connector Type: M23 female 90° angled, 19-pole
• Cable Length: 10 meters (32.8 feet)
• Conductor Specification: PUR 16x0.34mm² + 3x0.75mm² configuration
• Voltage Rating: Standard industrial signal voltages
• Cable Type: PUR (Polyurethane), gray with drag chain compatibility
• Protection Rating: IP67 when properly installed
• Pole Configuration: 19-pole used for comprehensive connectivity

Applications

• Extended reach 8-way distribution box connections requiring high pin count connectivity
• Distributed panel-mounted automation systems with M23 interface requirements
• Machine control applications requiring multiple signal channels with right-angle connections over distances
• Process control equipment with comprehensive input/output requirements in large installations
• Factory automation networks requiring high-density connectivity with angled orientation and extended reach
• Distribution systems requiring mixed signal transmission across longer cable runs

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Environmental Protection: IP67 rating for harsh industrial environments
• Material Standards: CFC-free, cadmium-free, silicone-free, lead-free construction

Benefits

• 90° angled design saves space and prevents cable interference in tight installations
• Extended 10-meter length suitable for distributed installations and larger systems
• 19-pole configuration provides comprehensive connectivity for complex applications
• Mixed conductor sizes accommodate both signal and power requirements
• PUR cable construction provides superior chemical and oil resistance
• Drag chain compatibility ensures reliable performance in dynamic applications

Downloads

• Product Data Sheet
