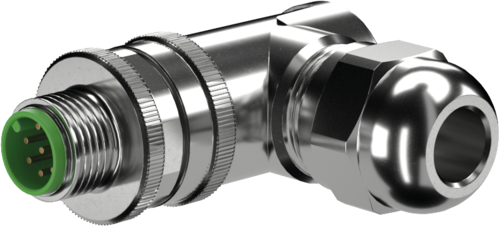

Murr M12 male 90° A-code, screw terminal 8-pole, cable Ø 6 - 8mm

Product Overview

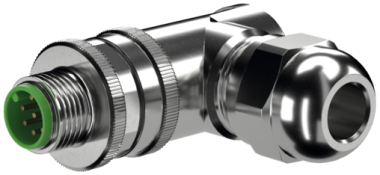

The Murrelektronik M12 male 90° angled field-wireable connector provides space-saving on-site cable termination for industrial automation. This A-coded, 8-pole connector with screw terminals accepts 6-8mm diameter cables, offering reliable signal transmission with right-angle design for space-constrained applications.

Key Features

• M12 male 90° angled connector with A-coding
• Field-wireable with screw terminal connections
• 8-pole configuration, max 0.5mm² wire cross-section
• 6-8mm cable diameter acceptance range
• IP67 protection rating when properly installed
• Plastic housing with chemical and oil resistance

Technical Specifications

• Article Number: 7000-17351-0000000
• Connector Type: M12 male 90° angled, A-coded, field-wireable

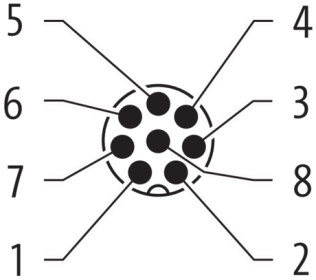

• Number of Poles: 8-pole
• Wire Cross-Section: Maximum 0.5mm² per conductor
• Cable Diameter Range: 6-8mm sealing range
• Protection Rating: IP67 when properly installed and mated
• Housing Material: Plastic with chemical and oil resistance

Applications

• Panel-mounted sensor connections requiring right-angle termination
• Space-constrained automation systems with M12 A-coded interfaces
• Custom cable length applications with angled connections
• Retrofit installations in confined spaces
• Field-serviceable connections requiring 90° orientation

Standards and Compliance

• Quality Standards: German engineering and manufacturing
• Environmental Protection: IP67 rating for industrial environments
• Material Standards: CFC-free, cadmium-free, silicone-free, lead-free construction

Benefits

• 90° design saves space and prevents cable interference
• Field-wireable reduces inventory for multiple cable lengths
• Screw terminals ensure reliable, serviceable connections
• On-site termination reduces installation complexity
• Resistance to chemicals and oils (test for specific applications)
