Murr M12 male 0° with cable shielded, D-code, green, 10m

Product Overview

The Murrelektronik M12 male straight connector with pre-assembled shielded Ethernet cable features a 4-pole D-coded configuration specifically designed for Ethernet CAT5 industrial data communication applications. This ready-to-use cable assembly includes a 10-meter PUR shielded cable with 1x4xAWG22 conductor configuration and open-ended wires for direct connection to control systems, providing robust connectivity in industrial automation environments where reliable Ethernet transmission and electromagnetic interference protection are essential.

Key Features

• M12 male 0° straight connector with D-coding and 4-pole configuration
• Pre-assembled 10-meter shielded PUR Ethernet cable with open-ended wires
• Specifically designed for Ethernet CAT5 communication applications
• 1x4xAWG22 conductor configuration optimized for Ethernet transmission
• Channel transmission capability up to 100MHz
• Integrated shielding for superior electromagnetic interference protection
• UL/CSA certified cable construction
• Green cable jacket for Ethernet cable identification
• Drag chain compatible design for dynamic applications
• Ready-to-use assembly eliminates field termination time
• IP67 protection rating at connector interface

Technical Specifications

• Article Number: 7000-14541-7941000
• Connector Type: M12 male 0° straight, D-coded
• Cable Length: 10 meters
• Cable Type: PUR (Polyurethane) jacket, shielded

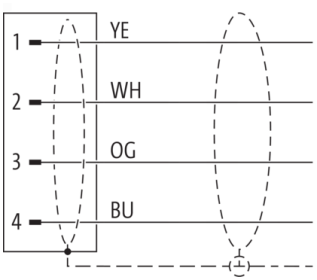

• Conductor Configuration: 1x4xAWG22 (Ethernet specification)

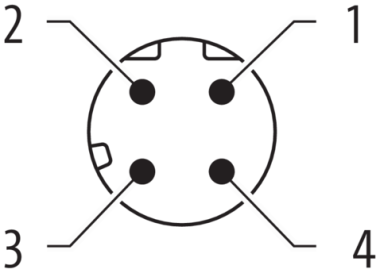

• Pole Configuration: 4-pole
• Communication Standard: Ethernet CAT5 compatible
• Transmission Properties: Channel transmission up to 100MHz
• Operating Voltage: 60V DC
• Operating Current: 4A per contact
• Operating Temperature: Standard industrial range
• Protection Rating: IP67 at connector interface
• Cable Color: Green (Ethernet standard)
• Certification: UL/CSA approved

Applications

• Ethernet CAT5 industrial network connections requiring reliable data transmission
• Process control systems with Ethernet communication requirements
• Manufacturing automation networks with electromagnetic interference concerns
• Control cabinet connections to Ethernet field devices
• Machine installations requiring drag chain compatible Ethernet cables
• Direct connection to PLCs, controllers, and Ethernet communication modules
• Industrial Ethernet networks requiring extended cable runs
• Automation systems requiring high-speed data transmission up to 100MHz

Standards and Compliance

• Protection Standards: IP67 rated connector interface
• Cable Certification: UL/CSA approved construction
• Communication Standards: Ethernet CAT5 compatible with 100MHz capability
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial Ethernet communication conditions

Benefits

• Pre-assembled design eliminates field termination time and potential errors
• Specialized 1x4xAWG22 conductor configuration optimized for Ethernet CAT5 transmission
• Ethernet CAT5 compatibility ensures protocol compliance and high-speed data transfer
• Integrated shielding provides superior EMI protection for Ethernet signal integrity
• Channel transmission up to 100MHz supports high-bandwidth applications
• Drag chain compatibility enables use in dynamic applications
• UL/CSA certification ensures compliance with North American standards
• Robust PUR jacket withstands chemicals, oils, and environmental contaminants
• 10-meter length ideal for extended cabinet-to-field device connections
• Green cable jacket provides easy identification as Ethernet cable
• Open-ended wires provide flexibility for various termination methods
• Ready-to-use assembly reduces installation time and labor costs
• D-coded design ensures proper Ethernet application compatibility
• Reliable long-term performance in demanding industrial environments

Downloads:

• Product Data Sheet
