Murr M12 male 0°/male, 0°, shielded, ethernet, 4-pole, 10m

Product Overview

This M12 D-coded shielded Ethernet cable (SKU: 7000-44511-7941000) features male M12 straight (0°) connectors on both ends with D-coding for reliable Industrial Ethernet CAT5e communication in industrial automation applications. The shielded PUR cable provides superior EMI protection with 10-meter length for extended-reach data transmission.

Connector Configuration:

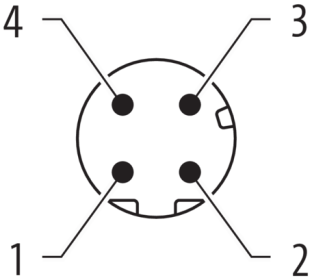

• Male connectors: M12, 4-pole, 0° straight, D-coded (both ends)
• Thread: M12 x 1mm, self-securing
• Protection: IP67, IP68
• Housing: Plastic with chemical/oil resistance
• Contacts: Gold-plated for optimum conductivity
• Coding: D-coded for Industrial Ethernet applications

Cable Specifications:

• Material: PUR (Polyurethane) jacket
• Conductor: 1x4xAWG22 shielded twisted pair
• Color: Green (standard for Ethernet)
• Length: 10 meters
• Category: Ethernet CAT5e
• Shielding: Integrated electromagnetic interference protection
• Temperature range: -40°C to +80°C (static), -25°C to +80°C (dynamic)

Electrical Characteristics:

• Data transmission: Industrial Ethernet CAT5e
• Transmission properties: Channel transmission up to 100m
• Impedance: 100Ω (characteristic)
• Voltage rating: 600V approved
• Shielding effectiveness: Superior EMI protection
• Transfer rate: Up to 100 Mbit/s full duplex

Environmental Performance:

• Bending radius (fixed): 4 x outer diameter
• Bending radius (dynamic): 8 x outer diameter
• Chemical resistance: Good resistance to chemicals, oils, and cooling lubricants
• Drag chain certified: Suitable for dynamic applications
• Vibration resistant: Union nut with vibration protection

Material & Construction:

• Connector housings: Plastic with chemical and oil resistance
• Cable jacket: PUR with superior durability
• Contacts: Gold-plated for maximum conductivity
• Shielding: Integrated throughout cable length
• Material compliance: UL/CSA certified, RoHS compliant

Certifications & Compliance:

• UL/CSA certified
• Ethernet CAT5e compliant
• D-coded for Industrial Ethernet applications
• Drag chain compatible
• 100% factory tested

Applications

Designed for Industrial Ethernet applications requiring reliable high-speed data transmission with EMI protection over extended distances. Ideal for factory automation, process control systems, and industrial communication networks. Perfect for connecting Industrial Ethernet devices, switches, and control systems where shielded CAT5e performance and M12 connectivity are essential for reliable operation up to 100 meters with 10-meter cable reach.
