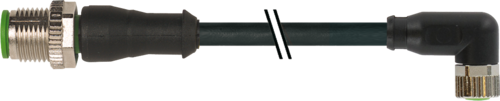

Murr M12 male 0°/M8 female 90°, 4-pole, 3m

Product Overview

This M12 to M8 connection cable (SKU: 7000-40621-6310300) features male M12 straight (0°) connector and female M8 90° angled connector, both with A-coding for reliable signal transmission between different connector sizes in industrial automation applications. The 3-meter cable with black PUR jacket provides extended connectivity for mixed-connector installations with space-saving angled M8 connection and drag chain capability.

Connector Configuration:

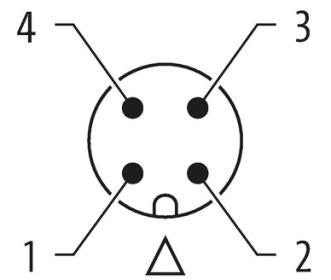

• Male connector: M12, 4-pole, 0° straight, A-coded
• Female connector: M8, 4-pole, 0° straight, A-coded
• Thread: M12 x 1mm (male), M8 x 1mm (female), self-securing
• Tightening torque: 0.6 Nm
• Protection: IP67
• Housing: Plastic with chemical/oil resistance

Cable Specifications:

• Material: PUR jacket
• Cross-section: 4 x 0.25 mm²
• Color: Black
• Length: 3 meters
• Wire arrangement: Brown, black, blue, white
• Temperature range: -25°C to +85°C
• Drag chain certified

Electrical Characteristics:

• Operating voltage: 250V AC/DC max.
• Current rating: 4A max. per contact
• Conductor: Stranded copper wire
• Electrical resistance: Optimized for medium cable runs

Environmental Performance:

• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: Good with PUR jacket
• Chemical and oil resistance: Good (application testing recommended)
• Drag chain compatibility: Certified for dynamic applications

Material & Construction:

• Connector housings: Plastic with chemical and oil resistance
• Jacket material: PUR (Polyurethane) - black color
• Shore hardness: Industrial-grade flexibility
• Material compliance: Lead-free, cadmium-free, CFC-free

Certifications & Compliance:

• UL/CSA certified
• DIN EN 61076-2-101 (M12) and DIN EN 61076-2-104 (M8) compliant
• Material compliance: Lead-free, cadmium-free, CFC-free
• Material group: IEC 60664-1, category I
• Drag chain compatible

Applications

Designed for industrial automation environments requiring medium-reach connections between M12 and M8 systems with space-efficient 90° angled M8 connections. Ideal for sensor/actuator interfacing where space constraints require angled connections, distributed control installations, and applications where M12 control systems need to connect to M8 devices over moderate distances with dynamic movement capability.

Download existing graphical data for this product:

Product Datasheet
