Murr M12 male 0°/M8 female 0°, straight, 4-pole, 2m

Product Overview

This M12 to M8 connection cable (SKU: 7000-40581-0510200) features male M12 straight (0°) connector and female M8 straight (0°) connector, both with A-coding for reliable signal transmission between different connector sizes in industrial automation applications. The 2-meter cable with yellow PUR jacket provides robust connectivity for mixed-connector installations with robot and drag chain certification.

Connector Configuration:

• Male connector: M12, 4-pole, 0° straight, A-coded

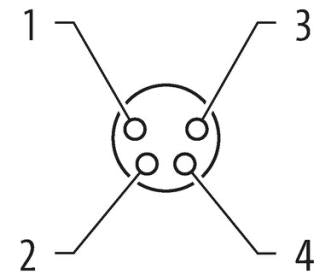

• Female connector: M8, 4-pole, 0° straight, A-coded
• Thread: M12 x 1mm (male), M8 x 1mm (female), self-securing
• Tightening torque: 0.6 Nm
• Protection: IP67
• Housing: Zinc die-cast, save-cover coated

Cable Specifications:

• Material: PUR jacket
• Cross-section: 4 x 0.25 mm² (#24AWG)
• Color: Yellow
• Length: 2 meters
• Wire arrangement: Brown, black, blue, white
• Temperature range: -25°C to +85°C
• Robot + drag chain certified
• Cable sleeves included

Electrical Characteristics:

• Operating voltage: 50V AC / 60V DC max.
• Current rating: 4A max. per contact
• Conductor: Stranded copper wire
• Electrical resistance: Optimized for M8 connector requirements

Environmental Performance:

• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: Good with PUR jacket
• Chemical and oil resistance: Good (application testing recommended)
• Robot certified for high-flex applications
• Drag chain compatibility: Certified for dynamic applications

Material & Construction:

• Connector housings: Zinc die-cast with save-cover coating
• Jacket material: PUR (Polyurethane) - yellow color
• Shore hardness: Industrial-grade flexibility
• Material compliance: Lead-free, cadmium-free, CFC-free, halogen-free, silicone-free

Certifications & Compliance:

• UL/CSA certified (cRUus)
• DIN EN 61076-2-101 (M12) and DIN EN 61076-2-104 (M8) compliant
• Flame resistance: UL/CSA FT2, EN 60332-1, IEC60332-2-2
• Material compliance: Lead-free, cadmium-free, CFC-free, halogen-free, silicone-free
• Material group: IEC 60664-1, category I
• CE marking

Applications

Designed for robotic applications and industrial automation environments requiring connections between M12 and M8 systems with high-flex capability. Ideal for robotic arms, automated machinery, and applications where M12 control systems need to connect to M8 sensors or devices in dynamic environments. The robot certification ensures reliable performance in demanding mechanical applications with repeated flexing and movement.
