Murr M12 male 0° / M8 female 0°, A-code, 3-pole, yellow, 7m

Product Overview

This M12 to M8 connection cable (SKU: 7000-40561-0100700) features male M12 straight (0°) connector and female M8 straight (0°) connector, both with A-coding for reliable signal transmission between different connector sizes in industrial automation applications. The 7-meter cable with yellow PUR jacket provides robust connectivity for mixed-connector installations.

Connector Configuration:

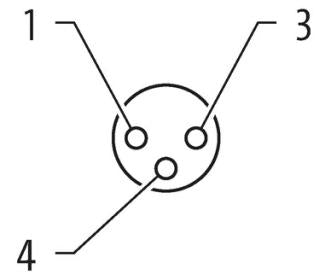

• Male connector: M12, 3-pole, 0° straight, A-coded
• Female connector: M8, 3-pole, 0° straight, A-coded
• Thread: M12 x 1mm (male), M8 x 1mm (female), self-securing
• Tightening torque: 0.6 Nm
• Protection: IP66K, IP67
• Housing: Plastic with chemical/oil resistance

Cable Specifications:

• Material: PUR jacket
• Cross-section: 3 x 0.25 mm²
• Color: Yellow
• Length: 7 meters

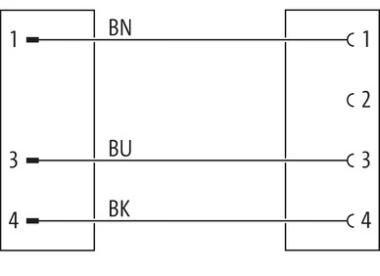

• Wire arrangement: Brown, black, blue
• Temperature range: -40°C to +80°C (static), -25°C to +80°C (dynamic)

Electrical Characteristics:

• Operating voltage: 250V AC/DC max.
• Current rating: 4A max. per contact
• Nominal voltage: 300V AC max.
• Conductor: Stranded copper wire
• Electrical resistance: Low-resistance for signal integrity

Environmental Performance:

• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: Good with PUR jacket
• Chemical and oil resistance: Good (application testing recommended)
• Drag chain compatible

Material & Construction:

• Connector housings: Plastic with chemical and oil resistance
• Jacket material: PUR (Polyurethane) - yellow color
• Shore hardness: Industrial-grade flexibility
• Material compliance: Lead-free, cadmium-free, CFC-free

Certifications & Compliance:

• UL/CSA certified
• DIN EN 61076-2-101 (M12/M8) compliant
• Material compliance: Lead-free, cadmium-free, CFC-free
• Drag chain compatible
• Material group: IEC 60664-1, category I

Applications Designed for industrial automation environments requiring connections between M12 and M8 systems. Ideal for interfacing between different sensor/actuator sizes, legacy system integration, and applications where M12 control systems need to connect to M8 sensors or devices. The 7-meter length provides flexibility for distributed installations with mixed connector requirements.

Download existing graphical data for this product:

Product Datasheet
