Murr M12 male 0° / M12 female 0°, A-code, AIDA, 5-pole, 4m

Product Overview

M12 connection cable (SKU: 7030-40041-1260400) designed for industrial automation applications conforming to AIDA standards. This A-coded connection cable features M12 male straight to M12 female straight connectors with 4 meters of yellow PUR cable for reliable signal transmission between sensors, actuators, and control systems in construction and industrial environments.

Key Features

• M12 male straight (0°) to M12 female straight (0°) A-coded connectors
• AIDA conform design meeting construction industry standards
• 4-meter yellow PUR cable for extension applications

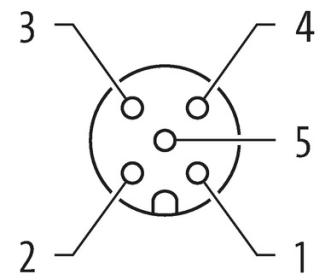

• 5-pole configuration with 5 × 0.34mm² conductors
• UL/CSA certification with drag chain capability
• Plastic housing with good resistance against chemicals and oils
• Gold-plated contacts ensuring optimum conductivity
• Ready-to-use extension cable for immediate installation

Technical Specifications

• Connector 1: M12 male straight (0°) A-coded, 5-pole
• Connector 2: M12 female straight (0°) A-coded, 5-pole
• Cable Length: 4 meters

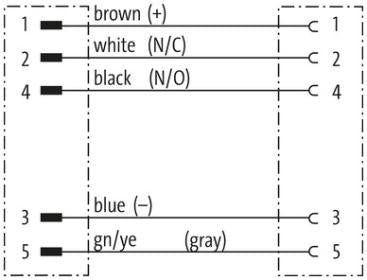

• Wire Configuration: 5 × 0.34mm² stranded copper
• Cable Type: PUR (Polyurethane) jacket, yellow color
• Operating Temperature: Standard industrial temperature range
• Housing Material: Plastic construction with chemical resistance
• Drag Chain Capability: Suitable for dynamic applications
• Protection Rating: IP67 (when properly mated)

Applications

• Signal extension in automation systems
• AIDA compliant construction industry applications
• Equipment connections requiring moderate extension lengths
• Control system signal distribution with standard distances
• Sensor and actuator extension in industrial installations
• Dynamic applications requiring drag chain compatibility

Compliance & Standards

• AIDA conform design for construction industry compliance
• UL/CSA certified construction
• A-coding compliant with IEC 61076-2-101 standards
• Chemical and oil resistant construction
• Drag chain certified for dynamic applications
• 100% tested during manufacturing process

Download existing graphical data for this product:

Product Datasheet
