Murr M12, male 0° / female 90° A-code, LED, 4-pole, black, 5m

Product Overview

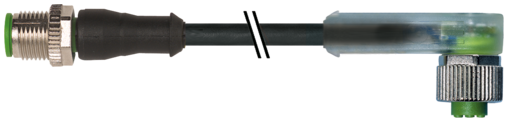

This M12 connection cable with LED status indicators (SKU: 7000-40341-6540500) features male straight (0°) connector and female 90° angled connector, both with A-coding for reliable signal transmission in industrial automation applications. The 5-meter cable with PUR jacket includes integrated LED status indicators for visual feedback and diagnostic capabilities, optimized for robotic and drag chain applications.

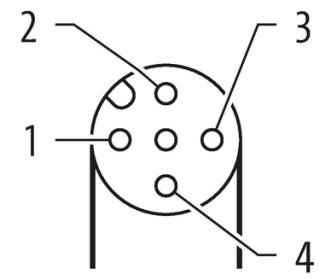

Connector Configuration:

• Male connector: M12, 4-pole, 0° straight, A-coded
• Female connector: M12, 4-pole, 90° angled, A-coded
• Thread: M12 x 1mm, self-securing
• Tightening torque: 0.6 Nm
• Protection degree: IP66K, IP67
• Width across flats: SW13

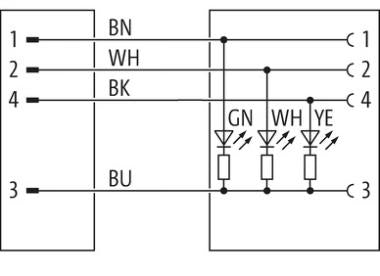

LED Status Indicators:

• Configuration: 3× LED indicators
• Type: PNP (NPN available on request)
• Function: Visual status indication and diagnostics
• Colors: Multi-color status indication
• Mounting: Integrated into connector housing

Cable Properties:

• Material: PUR jacket with PP wire insulation
• Cross-section: 4 x 0.34 mm²
• Color: Black

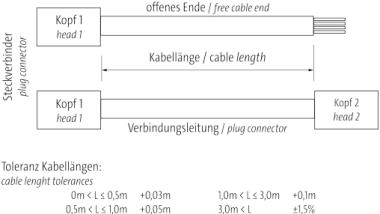

• Length: 5 meters
• Outer diameter: 4.5 mm (±5% tolerance)
• Weight: 36.3 g/m
• Wire arrangement: Brown, black, blue, white
• Special certification: Robot + drag chain rated

Electrical Characteristics:

• Operating voltage: 250V AC/DC max.
• Current rating: 4A max. per contact
• Nominal voltage: 300V AC max.
• AC withstand voltage: 2.5 kV @ 60s (wire-wire and wire-jacket)
• Electrical resistance: 57 Ω/km @ 20°C
• Conductor: Stranded copper wire (class 6), 42 strands x 0.1mm diameter

Environmental Performance:

• Operating temperature (static): -40°C to +80°C/+90°C
• Operating temperature (dynamic): -25°C to +80°C/+90°C
• Bending radius (fixed): 5 x outer diameter
• Bending radius (dynamic): 10 x outer diameter
• UV resistance: DIN EN ISO 4892-2 A
• Chemical, gasoline, and oil resistance: Good (application testing recommended)

Robotic & Dynamic Applications:

• Robot certified for high-flex applications
• Drag chain certified: 10 million bending cycles @ 25°C
• Travel distance: 10m horizontal @ 25°C
• Travel speed: 3 m/s @ 25°C
• Torsion cycles: 2 million cycles at ±180°/m
• Torsion speed: 35 cycles/min
• Enhanced flexibility for robotic arm movements

Material & Construction:

• Connector housing: Zinc die-cast, nickel-plated
• Shore hardness (jacket): 90 ±5 Shore A
• Shore hardness (insulation): 70 ±5 Shore D
• Material compliance: Lead-free, cadmium-free, CFC-free, halogen-free, silicone-free

Standards & Certifications:

• Product standard: DIN EN 61076-2-101 (M12)
• UL/CSA certified (cURus)
• Robot application certified
• Flame resistance: UL 1581 § 1090, IEC 60332-2-2, UL 1581 § 1100 FT2
• Material group: IEC 60664-1, category I
• Pollution degree: 3
