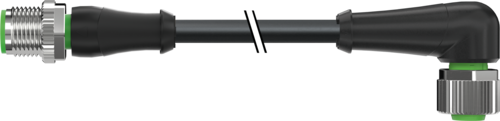

Murr M12 male 0°/female 90°, 4-pole, black, 1.5m

Product Overview

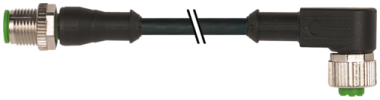

The Murrelektronik M12 connection cable features M12 male straight to M12 female 90° A-coded connectors with a 1.5-meter PVC cable. Designed for industrial automation signal transmission where angled connections are required, it provides reliable connections for sensors and actuators in space-constrained installations with UL/CSA certification.

Key Features

• M12 male straight to M12 female 90° A-coded configuration
• 1.5-meter PVC cable for cost-effective medium-distance connections
• 4x0.34mm² conductors for reliable signal transmission
• UL/CSA certified with IP67 protection rating
• 90° female connector for space-saving installations
• Pre-assembled for immediate installation

Technical Specifications

• Article Number: 7000-40121-6140150
• Cable Length: 1.5 meters
• Conductor Specification: 4x0.34mm² (#22 AWG)
• Cable Type: PVC (Polyvinyl Chloride), black jacket
• Connector Configuration: M12 male straight to M12 female 90°

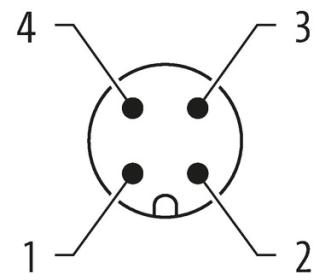

• Coding: A-coded
• Protection Rating: IP67
• Certification: UL/CSA approved

Applications

• Space-constrained installations requiring angled connections
• Equipment with limited clearance for straight connectors
• Panel-mounted devices needing 90° cable routing
• Medium-distance connections with directional changes
• Process control applications with space and routing limitations

Benefits

• Pre-assembled construction eliminates field termination
• A-coded configuration ensures proper orientation
• 90° female connector saves installation space
• Cost-effective PVC cable for stationary applications
• Angled design reduces cable stress and improves routing
