Murr M12 male 0°/female 0° shielded AIDA, 5-pole, 1m

Product Overview

M12 shielded connection cable (SKU: 7030-40521-0420100) designed for industrial automation applications conforming to AIDA standards. This A-coded shielded connection cable features M12 male straight to M12 female straight connectors with 1 meter of yellow PUR cable for reliable signal transmission between sensors, actuators, and control systems in construction and industrial environments requiring EMI protection.

Key Features

• M12 male straight (0°) to M12 female straight (0°) A-coded connectors
• AIDA conform design meeting construction industry standards
• Shielded cable construction for EMI protection
• 1-meter yellow PUR cable for extension applications
• 5-pole configuration with 5 × 0.34mm² conductors
• UL/CSA certification with drag chain capability
• Plastic housing with good resistance against chemicals and oils
• Gold-plated contacts ensuring optimum conductivity
• Ready-to-use shielded extension cable for immediate installation

Technical Specifications

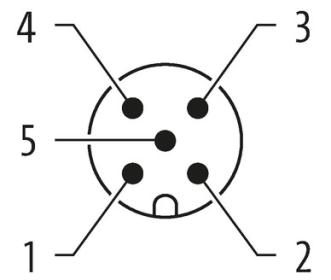

• Connector 1: M12 male straight (0°) A-coded, 5-pole

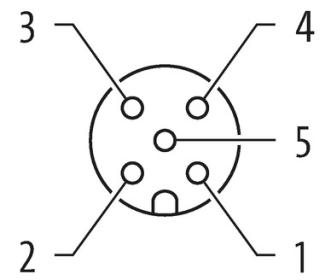

• Connector 2: M12 female straight (0°) A-coded, 5-pole
• Cable Length: 1 meter

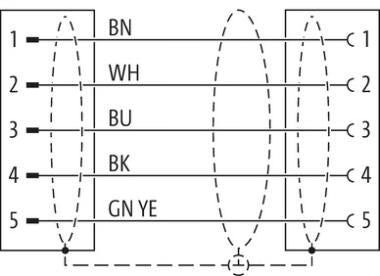

• Wire Configuration: 5 × 0.34mm² stranded copper with shield
• Cable Type: PUR (Polyurethane) jacket, yellow color, shielded
• Operating Temperature: Standard industrial temperature range
• Housing Material: Plastic construction with chemical resistance
• Drag Chain Capability: Suitable for dynamic applications
• Protection Rating: IP67 (when properly mated)

Applications

• Signal extension in automation systems requiring EMI protection
• AIDA compliant construction industry applications
• Equipment connections in electrically noisy environments
• Control system signal distribution with electromagnetic interference concerns
• Sensor and actuator extension requiring signal integrity protection
• Dynamic applications requiring drag chain compatibility with shielding

Compliance & Standards

• AIDA conform design for construction industry compliance
• UL/CSA certified construction
• A-coding compliant with IEC 61076-2-101 standards
• Chemical and oil resistant construction
• Drag chain certified for dynamic applications
• Shielded construction for EMI protection
• 100% tested during manufacturing process

Download existing graphical data for this product:

Product Datasheet
