Murr M12, male 0° / female 0°, A-code, yellow, 0.5m

Product Overview

M12 connection cable (SKU: 7030-40141-1260100) designed for industrial automation applications conforming to AIDA standards. This A-coded connection cable features M12 male straight to M12 female 90° connectors with 1 meter of yellow PUR cable for reliable signal transmission between sensors, actuators, and control systems in construction and industrial environments where angled connections are required.

Key Features

• M12 male straight (0°) to M12 female 90° A-coded connectors
• AIDA conform design meeting construction industry standards
• 1-meter yellow PUR cable for extension applications

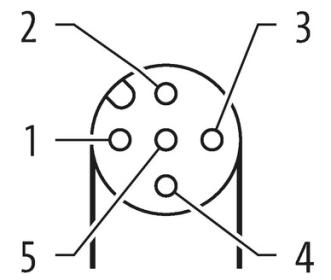

• 5-pole configuration with 5 × 0.34mm² conductors
• UL/CSA certification with drag chain capability
• Plastic housing with good resistance against chemicals and oils
• Gold-plated contacts ensuring optimum conductivity
• 90° female connector ideal for space-constrained installations

Technical Specifications

• Connector 1: M12 male straight (0°) A-coded, 5-pole
• Connector 2: M12 female 90° A-coded, 5-pole
• Cable Length: 1 meter

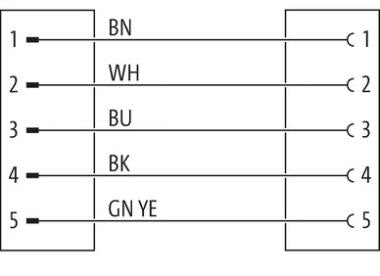

• Wire Configuration: 5 × 0.34mm² stranded copper
• Cable Type: PUR (Polyurethane) jacket, yellow color
• Operating Temperature: Standard industrial temperature range
• Housing Material: Plastic construction with chemical resistance
• Drag Chain Capability: Suitable for dynamic applications
• Protection Rating: IP67 (when properly mated)

Applications

• Signal extension in automation systems with space constraints
• AIDA compliant construction industry applications
• Equipment connections requiring angled cable routing
• Control system installations where 90° connections are beneficial
• Sensor and actuator extension in compact industrial installations
• Dynamic applications requiring drag chain compatibility

Compliance & Standards

• AIDA conform design for construction industry compliance
• UL/CSA certified construction
• A-coding compliant with IEC 61076-2-101 standards
• Chemical and oil resistant construction
• Drag chain certified for dynamic applications
• 100% tested during manufacturing process

Download existing graphical data for this product:

Product Datasheet
