Murr M12, male 0° / female 0°, A-code, 5-pole, 0.5m

Product Overview

This M12 shielded data connection cable (SKU: 7000-40531-8030050) features male and female straight (0°) connectors with A-coding for DeviceNet and CANopen communication. The 0.5-meter cable with violet PUR jacket provides reliable fieldbus connectivity with electromagnetic shielding.

Connector Configuration:

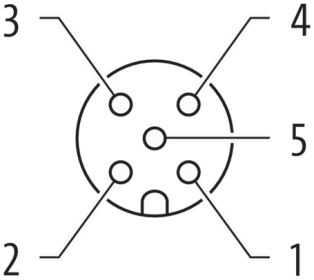

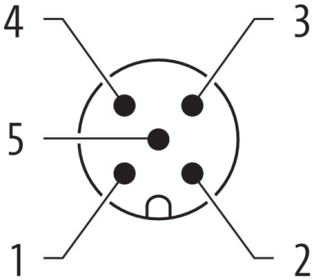

• Configuration: M12 male 0° to M12 female 0°, 5-pole, A-coded
• Thread: M12 x 1mm, self-securing, 0.6 Nm torque
• Protection: IP66K, IP67
• Housing: Plastic with chemical/oil resistance

Cable Specifications:

• Material: PUR jacket, violet color
• Length: 0.5 meters
• Wire gauge: AWG24 + AWG22 (mixed gauge)
• Construction: Twisted pair with electromagnetic shielding
• Temperature range: -40°C to +80°C (static), -25°C to +80°C (dynamic)

Protocol & Electrical:

• Protocols: DeviceNet, CANopen
• Operating voltage: 24V DC
• Data rate: Up to 1 Mbps
• Impedance: 120Ω ±5%
• Shield effectiveness: >60dB EMI protection
• Bending radius: 6x outer diameter (fixed), 12x outer diameter (dynamic)

Certifications & Compliance:

• UL/CSA certified
• DIN EN 61076-2-101 (M12) compliant
• DeviceNet/CANopen protocol standards
• Material compliance: Lead-free, cadmium-free, CFC-free
• Drag chain compatible

Applications Designed for DeviceNet and CANopen industrial networks requiring short, reliable connections. Ideal for connecting sensors, actuators, and I/O devices in control panels and automation systems where protocol-specific communication and EMI protection are essential.
