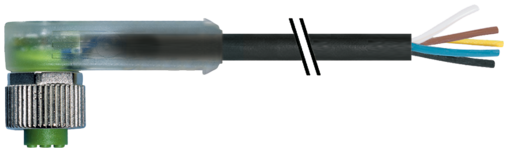

Murr M12 female 90° with cable LED, 5-pole, 5m

Product Overview

The Murrelektronik M12 female 90° angled connector is a pre-assembled cordset with integrated LED status indication and maximum 5-pole configuration for industrial sensor and actuator applications requiring space-saving design with visual feedback and dynamic flexibility. This A-coded connector features a 5-meter PUR cable with 5x0.34mm² conductors in black color, triple LED indicators, and drag chain capability, providing reliable connectivity with comprehensive visual status monitoring in space-constrained industrial automation environments.

Key Features

• M12 female 90° angled connector with A-coding, maximum 5-pole configuration, and LED status indication
• 5-meter PUR cable with drag chain capability for dynamic applications
• 5x0.34mm² conductors for maximum multi-signal transmission

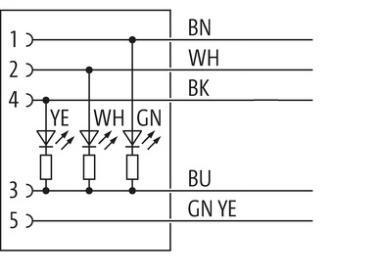

• Triple LED indicators (3× LED PNP) for comprehensive visual status monitoring
• UL/CSA certification
• Gold-plated contacts for optimum conductivity
• Black cable jacket for professional appearance
• Open-ended wire termination for flexible connections

Technical Specifications

• Article Number: 7000-12441-6350500

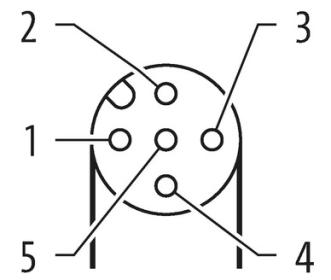

• Connector Type: M12 female 90° angled, A-coded
• Cable Length: 5 meters
• Conductor Specification: 5x0.34mm² PUR cable
• Voltage Rating: Up to 125V DC
• Current Rating: 4A maximum per contact
• Operating Temperature: -40°C to +80°C
• LED Function: 3× LED (PNP) for comprehensive status indication
• Cable Type: PUR (Polyurethane), black with drag chain capability
• Protection Rating: IP67 when mated

Applications

• Space-constrained sensor and actuator connections requiring maximum 5-pole configuration with comprehensive visual feedback
• Panel-mounted equipment requiring right-angle connectivity with triple LED monitoring and maximum signal capacity
• Machine control signal transmission with comprehensive visual diagnostic requirements and full I/O capability
• Process control applications with limited clearance, enhanced status indication needs, and maximum signal requirements
• Factory automation sensor networks requiring comprehensive visual connection status with maximum 5-wire connections
• Robotics and automated equipment where space efficiency, comprehensive LED feedback, and maximum signals are critical

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• 90° angled design saves space and prevents cable interference
• PUR cable provides superior flexibility and chemical resistance for harsh environments
• Triple LED indicators provide comprehensive visual status feedback for enhanced troubleshooting
• 5-pole configuration supports maximum signal requirements for M12 A-coded connections
• Drag chain capability enables use in moving machinery applications
• Resistance to oils and cooling lubricants for industrial environments
• Plastic housings with good resistance against chemicals and oils
