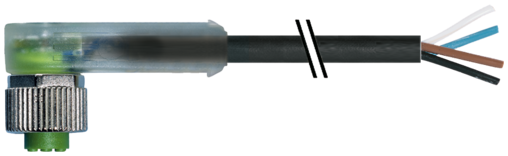

Murr M12 female 90° with cable LED, 4-pole, 20m

Product Overview

The Murrelektronik M12 female 90° angled connector is a pre-assembled cordset with integrated LED status indication and 4-pole configuration for industrial sensor and actuator applications requiring space-saving design with visual feedback and maximum extended reach. This A-coded connector features a 20-meter PUR cable with 4x0.34mm² conductors in black color, dual LED indicators (bridged), and drag chain capability, providing reliable long-distance connectivity with visual status monitoring in space-constrained industrial automation environments requiring maximum cable runs.

Key Features

• M12 female 90° angled connector with A-coding, 4-pole configuration, and LED status indication
• 20-meter PUR cable with drag chain capability for maximum extended dynamic applications
• 4x0.34mm² conductors for multi-signal transmission over maximum distances
• Dual LED indicators (2× LED PNP) bridged for visual status monitoring
• UL/CSA certification
• Gold-plated contacts for optimum conductivity
• Black cable jacket for professional appearance
• Open-ended wire termination for flexible connections

Technical Specifications

• Article Number: 7000-12401-6332000
• Connector Type: M12 female 90° angled, A-coded
• Cable Length: 20 meters
• Conductor Specification: 4x0.34mm² PUR cable
• Voltage Rating: Up to 250V AC/DC
• Current Rating: 4A maximum per contact
• Operating Temperature: -40°C to +80°C
• LED Function: 2× LED (PNP) bridged for status indication
• Cable Type: PUR (Polyurethane), black with drag chain capability
• Protection Rating: IP67 when mated

Applications

• Maximum extended reach space-constrained sensor and actuator connections requiring 4-pole configuration with visual feedback
• Large-scale panel-mounted equipment requiring right-angle connectivity with LED monitoring across extensive systems
• Machine control signal transmission with visual diagnostic requirements and maximum I/O capability over long distances
• Process control applications with limited clearance, status indication needs, and multiple signal requirements across large installations
• Extensive factory automation sensor networks requiring visual connection status with 4-wire connections over maximum distances
• Large-scale robotics and automated equipment where space efficiency, maximum reach, LED feedback, and multiple signals are critical

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• 90° angled design saves space and prevents cable interference
• PUR cable provides superior flexibility and chemical resistance for harsh environments
• LED indicators provide immediate visual status feedback for enhanced troubleshooting
• 4-pole configuration supports expanded signal requirements
• 20-meter length eliminates need for intermediate connections in maximum reach installations
• Drag chain capability enables use in large-scale moving machinery applications
• Resistance to oils and cooling lubricants for industrial environments
