Murr M12 female 90°, A-code with cable, black, 5-pole, 5m

Product Overview

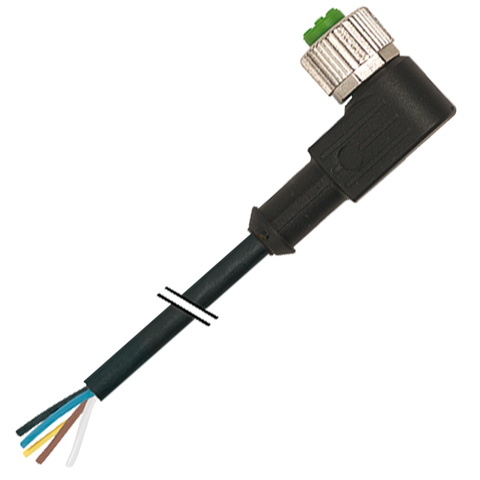

The Murrelektronik M12 female 90° angled connector is a pre-assembled cordset with 5-pole configuration designed for industrial sensor and actuator applications requiring space-saving design with expanded signal capacity. This A-coded connector features a 5-meter PVC cable with 5x0.34mm² conductors, providing reliable connectivity in space-constrained industrial automation environments requiring maximum signal transmission capability.

Key Features

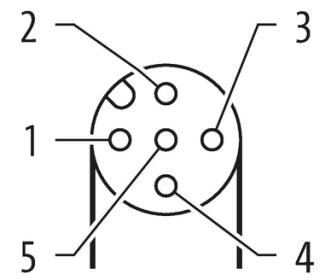

• M12 female 90° angled connector with A-coding and 5-pole configuration
• 5-meter PVC cable for standard industrial applications
• 5x0.34mm² conductors for maximum multi-signal transmission
• UL/CSA certification
• Gold-plated contacts for optimum conductivity
• Black cable jacket for professional appearance

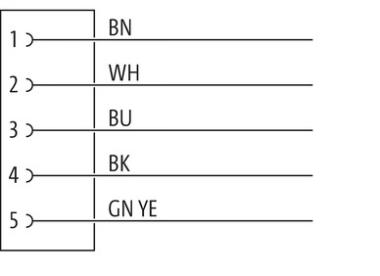

• Open-ended wire termination for flexible connections

Technical Specifications

• Article Number: 7000-12361-6150500
• Connector Type: M12 female 90° angled, A-coded
• Cable Length: 5 meters
• Conductor Specification: 5x0.34mm² PVC cable
• Voltage Rating: Up to 125V DC
• Current Rating: 4A maximum per contact
• Operating Temperature: -25°C to +80°C
• Cable Type: PVC (Polyvinyl Chloride), black
• Protection Rating: IP67 when mated

Applications

• Space-constrained sensor and actuator connections with maximum 5-pole signal requirements
• Panel-mounted equipment requiring right-angle connectivity with comprehensive signal lines
• Machine control signal transmission in tight spaces with full I/O capacity
• Process control applications with limited clearance and maximum signal needs
• Factory automation sensor networks requiring complete 5-wire connections
• Robotics and automated equipment where space efficiency and maximum signals are critical

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• 90° angled design saves space and prevents cable interference
• PVC cable provides cost-effective solution for standard applications
• 5-pole configuration supports maximum signal requirements for M12 A-coded connections
• Resistance to common industrial environments
• Plastic housings with good resistance against chemicals and oils
• Optimal combination of space-saving design and maximum signal capacity

Download existing graphical data for this product:

• Data Sheet
