Murr M12 female 0°, A-code, 4-pole, black, 5m

Product Overview

The Murrelektronik M12 female straight connector is a pre-assembled cordset designed for industrial sensor and actuator connectivity applications requiring socket-type connections. This A-coded signal connector features a 5-meter PUR cable with 4x0.34mm² conductors, terminated with open-ended wires for direct connection to control systems. Rated for 30V AC/DC signal applications with drag chain capability and UL/CSA certification, it provides reliable connectivity in demanding industrial automation environments requiring dynamic flexibility.

Key Features

• M12 female straight (0°) connector with A-coding for signal applications
• 5-meter PUR cable with drag chain capability for dynamic applications
• 4x0.34mm² conductors optimized for signal transmission
• UL/CSA certification for North American applications
• Gold-plated contacts ensuring optimum conductivity
• Black cable jacket for professional appearance

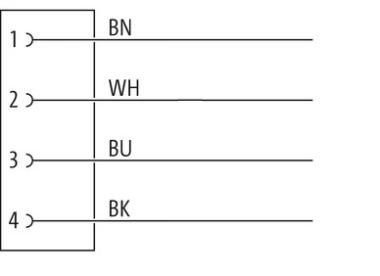

• Open-ended wire termination with cable sleeves for flexible connections
• 100% tested during manufacturing process for highest quality and reliability

Technical Specifications

• Article Number: 7000-12221-6340500
• Connector Type: M12 female straight (0°), A-coded
• Cable Length: 5 meters
• Conductor Specification: 4x0.34mm² PUR cable
• Voltage Rating: 30V AC/DC signal applications
• Current Rating: 4A maximum
• Cable Type: PUR (Polyurethane), black with drag chain capability
• Contact Material: Gold-plated for optimum conductivity
• Protection Rating: IP67 when mated

Applications

• Industrial sensor and actuator socket connections in moving applications
• Machine control signal reception and distribution with dynamic requirements
• Process control applications requiring female connector interfaces in moving equipment
• Factory automation sensor networks with drag chain systems
• Equipment requiring socket-type connections for easy sensor replacement in dynamic environments
• Robotics and automated equipment where socket connectivity and cable flexibility are critical
• Material handling and conveyor systems requiring flexible socket connections

Standards and Compliance

• Certification: UL/CSA approved for North American markets
• Drag Chain Standards: Certified for dynamic flex applications
• Quality Standards: German engineering and manufacturing
• Protection Standards: Industrial-grade environmental protection with IP67 rating

Benefits

• Pre-assembled construction eliminates field termination errors
• Female connector design enables easy sensor and actuator connection/disconnection
• PUR cable provides superior flexibility and chemical resistance for harsh environments
• Vibration-resistant design with union nut vibration protection
• Gold-plated contacts ensure long-term reliable connectivity
• Drag chain capability enables use in moving machinery applications
• Black cable jacket provides professional appearance suitable for most installations
• High resistance against abrasion, hydrolysis, and UV exposure
• Resistance to oils and cooling lubricants for industrial environments
• Cable sleeves included for professional installation
• Plastic housings with good resistance against chemicals and oils
• Ideal for socket connections requiring both flexibility and durability

Download existing graphical data for this product:

• Data Sheet
