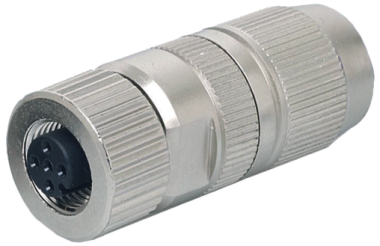

Murr M12 Connector, female 0°, 3-pole, c/s 0.25 - 0.34mm²

Product Overview

The Murrelektronik M12 female straight field-wireable connector features innovative IDC (Insulation Displacement Connector) technology specifically designed for industrial data communication applications requiring quick and secure field termination with socket configuration. This B-coded connector accommodates 3-pole configurations with wire cross-sections from 0.25 to 0.34mm² and cable diameters from 7 to 8.8mm, providing robust shielded socket connections in industrial automation environments where fast installation and reliable data reception are essential.

Key Features

• M12 female 0° straight connector with B-coding and 3-pole configuration
• Advanced IDC (Insulation Displacement Connector) technology for quick termination
• Integrated shielding for superior electromagnetic interference protection
• Wire cross-section compatibility: 0.25 to 0.34mm²
• Cable diameter range: 7 to 8.8mm
• IDC terminals eliminate wire stripping and provide secure connections
• Robust strain relief system for cable protection
• Operating voltage suitable for industrial data applications
• Durable plastic housing with superior chemical and oil resistance
• Field-wireable design for on-site installation flexibility
• IP67 protection rating when properly assembled

Technical Specifications

• Article Number: 7000-14221-0000000
• Connector Type: M12 female 0° straight, B-coded, field-wireable
• Pole Configuration: 3-pole
• Connection Method: IDC (Insulation Displacement Connector) with integrated shielding
• Wire Cross-Section: 0.25 to 0.34mm²
• Cable Diameter: 7 to 8.8mm
• Shielding: Integrated electromagnetic interference protection
• Operating Voltage: 32V AC/DC (B-coded applications)
• Operating Current: 4A maximum
• Operating Temperature: -40°C to +85°C
• Protection Rating: IP67 when properly assembled
• Housing Material: High-resistance plastic with excellent chemical resistance

Applications

• Industrial data communication networks requiring quick field socket termination
• Process control systems requiring reliable shielded data socket connections with fast installation
• Manufacturing automation systems with electromagnetic interference concerns
• Control panel socket connections requiring rapid installation without wire stripping
• Field installation of data receiving socket connections with IDC convenience
• Applications where pre-assembled female cordsets are impractical and fast termination is needed
• Industrial network socket connections requiring field-installed connectors with minimal installation time
• Data receiving systems in environments requiring quick connector assembly

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• EMI Standards: Integrated shielding for electromagnetic compatibility
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial data communication conditions

Benefits

• IDC technology eliminates wire stripping and reduces installation time by up to 50%
• B-coded 3-pole socket configuration ensures proper industrial data communication compatibility
• Integrated shielding provides superior EMI protection for data signal integrity
• No specialized tools required for IDC termination
• Wire cross-section range optimized for standard industrial data cables
• Field-wireable configuration eliminates need for pre-assembled female cordsets
• Excellent resistance against chemicals, oils, lubricants, and aggressive media
• Robust plastic housing withstands demanding industrial environments
• IP67 protection ensures reliable performance in harsh environmental conditions
• Cost-effective solution for rapid field socket termination requirements
• Easy field installation with IDC technology
• Superior data reception performance with integrated shielding
• Wide operating temperature range from -40°C to +85°C
• Reliable long-term performance for critical data communication applications
