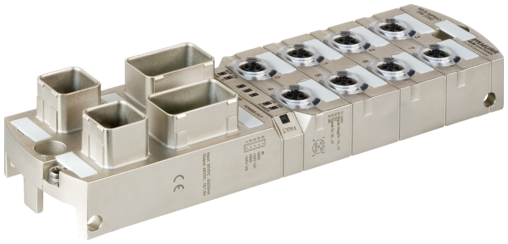

xMurrelektronik MVK+ MPNIO DI8 DI8 IRT PUSH PULL. only for Daimler projects!.
View full specifications on Murrelektronik | Download datasheet
Specifications
x| Art.No. | 555280 |
| Weight | 0.975 kg |
| Country of origin | DE |
| Model designation | MVK+ MPNIO DI8 DI8 IRT PP |
Description
Digital inputs DI8 DI8 (IRT)
Ethernet 10/100 Mbit/s; Push Pull RJ45 Data connector
Push Pull Power connector, max. 12 A
M12, 5-pole, A-coded
Galvanic isolation
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Technical Data
Electrical Data | Supply
| Norm operating voltage | EN 61131-2 |
| Operating voltage US DC | 24 V |
| Total current UA max. | 12 A |
| Total current US max. | 12 A |
Electrical Data | Input
| Type input | PNP, for 3-wire sensors or mechanical switches |
| Overload resistant | yes |
| Short-circuit protected | yes |
| Sensor current US per input max. | 0.2 A |
Industrial Communication
| Supported protocol | PROFINET |
| Number of active connections (IO controller) max. | 2 |
| FSU (Fast-Start-Up) | yes |
| Fast start up time max. | 0.5 s |
| IRT (network communication) | yes |
| MRP client | yes |
| PROFINET Netload Class | III |
| PROFINET addressing | DCP |
| PROFINET conformance class | C |
| PROFINET specification | V2.2 |
| Shared device/input | yes |
Diagnostics
| Actuator warning | per channel via LED and BUS |
| Diagnostic | No voltage, Under voltage |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| Short circuit diagnosis | yes |
| LED display | Ethernet connection/data traffic |
| Cable break | per port |
| Overload diagnosis | yes |
Device Protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |

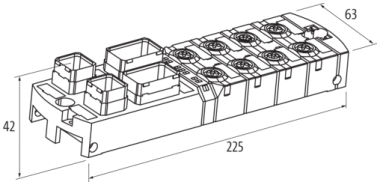

Mechanical Data | Mounting Data
| Suitable for mounting type | 2-hole screw mounting |
| Height | 42.7 mm |
| Width | 63 mm |
| Depth | 225 mm |
Environmental Characteristics | Climatic
| Operating temperature min. | 0 °C |
| Operating temperature max. | 55 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 70 °C |
Connection Data
Connection Types
| Connection type 1 | Power In, Power Out |
| Connection type 2 | X4-X7 |
| Connection type 3 | XD1, XD2 |
Connection Type 1
| Family construction form | Push Pull |
| Gender | male |
| Color contact carrier | green |
| No. of poles | 5 |
| PIN 1 | 24 V DC (US) |
| PIN 2 | 0 V (US) |
| PIN 3 | 24 V DC (UA) |
| PIN 4 | 0 V (UA) |
| PIN 5 | PE |
Connection Type 2
| Family construction form | M12 |
| Gender | female |
| Color contact carrier | black |
| Coding | A |
| No. of poles | 5 |
| PIN 1 | 24 V DC (US) |
| PIN 2 | DI |
| PIN 3 | 0 V (US) |
| PIN 4 | DI |
| PIN 5 | PE |
Connection Type 3
| Family construction form | RJ45 |
| Gender | female |
| Color contact carrier | black |
| No. of poles | 8 |
| PIN 1 | TD + |
| PIN 2 | TD - |
| PIN 3 | RD + |
| PIN 4 | n.c. |
| PIN 5 | n.c. |
| PIN 6 | RD - |
| PIN 7 | n.c. |
| PIN 8 | n.c. |
Commercial Data
| ECLASS-6.0 | 27242604 |
| ECLASS-6.1 | 27242604 |
| ECLASS-7.0 | 27242604 |
| ECLASS-8.0 | 27242604 |
| ECLASS-9.0 | 27242604 |
| ECLASS-10.1 | 27242604 |
| ECLASS-11.1 | 27242604 |
| ECLASS-12.0 | 27242604 |
| ETIM-5.0 | EC001599 |
| Customs tariff number | 85389099 |
| GTIN | 4048879563369 |
| Packaging unit | 1 |
