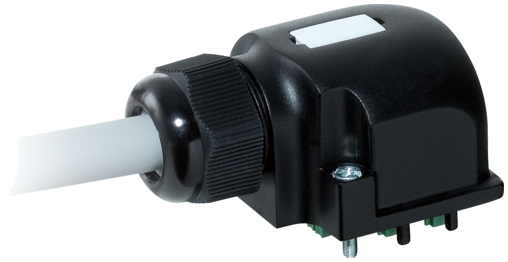

Murr Cap for D-box, M12 8-way, 4-pole, 10m
Murr Cap for D-box, M12 8-way, 4-pole, 10m

Murr Cap for D-box, M12 8-way, 4-pole, 10m Part number 8000-88459-3621000

Murrelektronik CAP FOR D-BOX M12 8-WAY 4 POLE. No pot.-sep. 10m PUR/PVC, 8x0,34+3X0.75. View full specifications on Murrelektronik | Download datasheet
Vendor: Murrelektronik
Availability: In stock
Product type: Field Sensing & Connectivity
Please hurry! Only 19 left in stock
Description
Description
x

Murrelektronik CAP FOR D-BOX M12 8-WAY 4 POLE. No pot.-sep. 10m PUR/PVC, 8x0,34+3X0.75.

View full specifications on Murrelektronik | Download datasheet

Specifications
Specifications
x
Tariff85444290
GTIN4048879054119
FlammabilityFlame retardant / UL 1581 § 1090 / IEC 60332-2-2 / UL 1581 § 1100 FT2
Temperature: Operating / Dynamic-5°C to 70°C
Material: Housing / GripPlastic
Material: Jacket / Cover NutPUR (outer) / PVC (inner)
Material: Conductor WireBare stranded copper wire
Material: Wire InsulationPVC
Cable Type362 - 2
Stranding2 wires with Filler twisted / 9 wires around Stranding combination twisted
Wire arrangementwhite / violet / (green / yellow / gray / pink / red / black / brown / blue / green-yellow)
Bending Radius5 x Outer Diameter (fixed) / 10 x Outer Diameter (Dynamic)
Part Width (mm)48mm
Part Length (mm)68mm
Part Height (mm)33.5mm
Cable Diameter (mm)8.1mm
Packaging Size1 pc(s)
Cable Weight 115.5 g/m
Connection TypeFemale / M12 - 11 Poles
Rated Voltage300 V
Current load capacityto DIN VDE 0298-4 / 4 A
Current Rating / Rated Current8 A
ColourGrey
Documents
Documents
x
Download Datasheet
