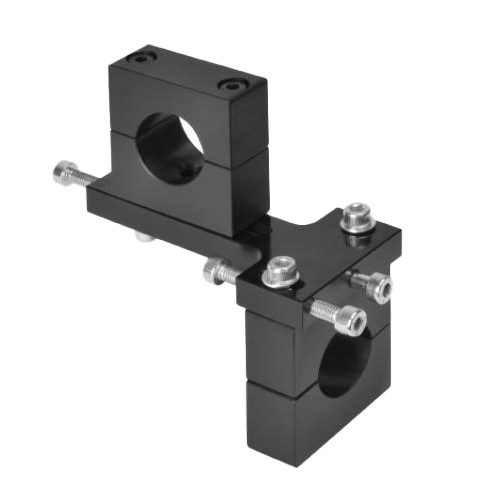

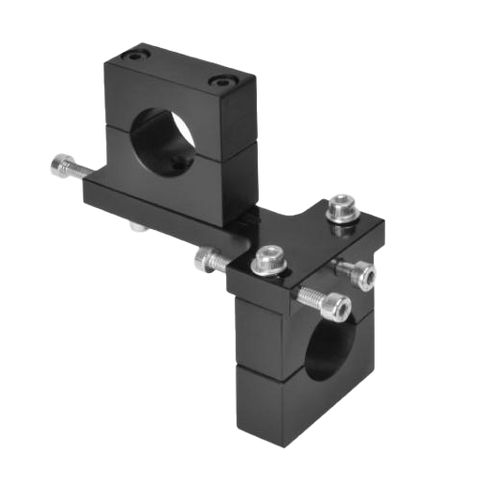

Lap Bracket for mounting on precision tube, Tilt laser

SKU / Article No. B3-HD
Product Type Field Sensing & Connectivity
Category Cable Management
Sub-category Brackets
In Stock
View Full Product Details on Lap Laser 💬 Ask an Expert - Technical Support Available

Product Description

The LAP B3HD is a high-precision line laser with a projected line width of only 1mm at a distance of 3 meters. It projects an extremely sharp, homogeneous line with uniform intensity distribution across its entire length. The B3HD is available with red or green laser diodes. The housing is made of anodized aluminium and is sealed to IP67 standards, making it suitable for harsh industrial environments. The laser's compact design allows for easy integration into machines and systems.

Technical Specifications

Technical Data

Laser class2M, 3R
Wave length635 nm (red), 520 nm (green)
Fan angle10°, 20°, 30°, 40°, 50°, 60°, 75°, 90°
Laser power1 ... 40 mW
Focus range0.1 m ... ∞
Line width1 mm @ 3 m distance
Accuracy± 0.05 mm/m
Mean time between failures (MTBF)30,000 h (red), 10,000 h (green)
Laser adjustment3 axes, integrated
Temperature range0 ... +45 °C
ConnectionM12 connector, 5-pin
Protection classIP 67
HousingAluminium, anodized
Supply voltage10 ... 30 V DC
Power consumption< 1 W ... 5 W
Dimensions (L x W x H)95 x 24 x 33 mm³

Features

  • Extremely thin laser line
  • High precision
  • Homogeneous intensity distribution
  • Compact design
  • Robust aluminium housing
  • Protection class IP67
  • Integrated 3-axis adjustment

Applications

  • Positioning
  • Alignment
  • Edge detection
View complete specifications on Lap Laser
