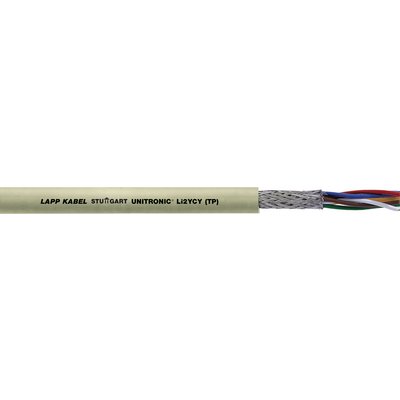

Lapp Unitronic Li2YCY (TP) PVC data cable, 4 x 2 x 0.22mm²
Lapp Unitronic Li2YCY (TP) PVC data cable, 4 x 2 x 0.22mm²

Lapp Unitronic Li2YCY (TP) PVC data cable, 4 x 2 x 0.22mm²

This UNITRONIC Li2YCY (TP) cable is a low-capacitance, shielded data transmission cable with twisted pairs, suitable for RS485/RS422 applications in fixed installations, providing EMI protection and supporting data rates up to 10 Mbps.
Vendor: Lapp Kabel
SKU: 0031322
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Description
Description
x
This UNITRONIC Li2YCY (TP) cable is a low-capacitance, shielded data transmission cable with twisted pairs, suitable for RS485/RS422 applications in fixed installations, providing EMI protection and supporting data rates up to 10 Mbps.
Specifications
Specifications
x
Compliance / CertificationsBased on VDE 0812
Country of OriginGermany
FlammabilityFlame-retardant acc. to IEC 60332-1-2
Temperature: Operating-5°C to 70°C
Material: Inner Conductor / CoreFine wire strand made of tinned-copper wires
Material: Insulation / Inner sheathPpolyethylene
Material: Jacket / Outer SheathPVC
Bending RadiusOccasional flexing: 15 x outer diameter Fixed installation: 6 x outer diameter
Diameter: External conduit size (mm)7.3mm
Weight 78000g
Test VoltageCore/core: 2000 V / Core/screen: 1000 V
Documents
Documents
x
Download Datasheet
