Product Information

Product Name

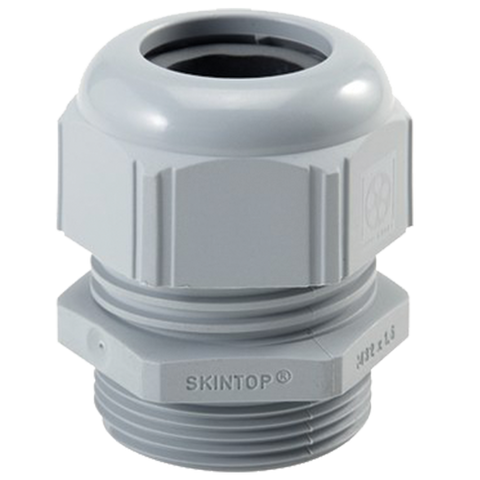

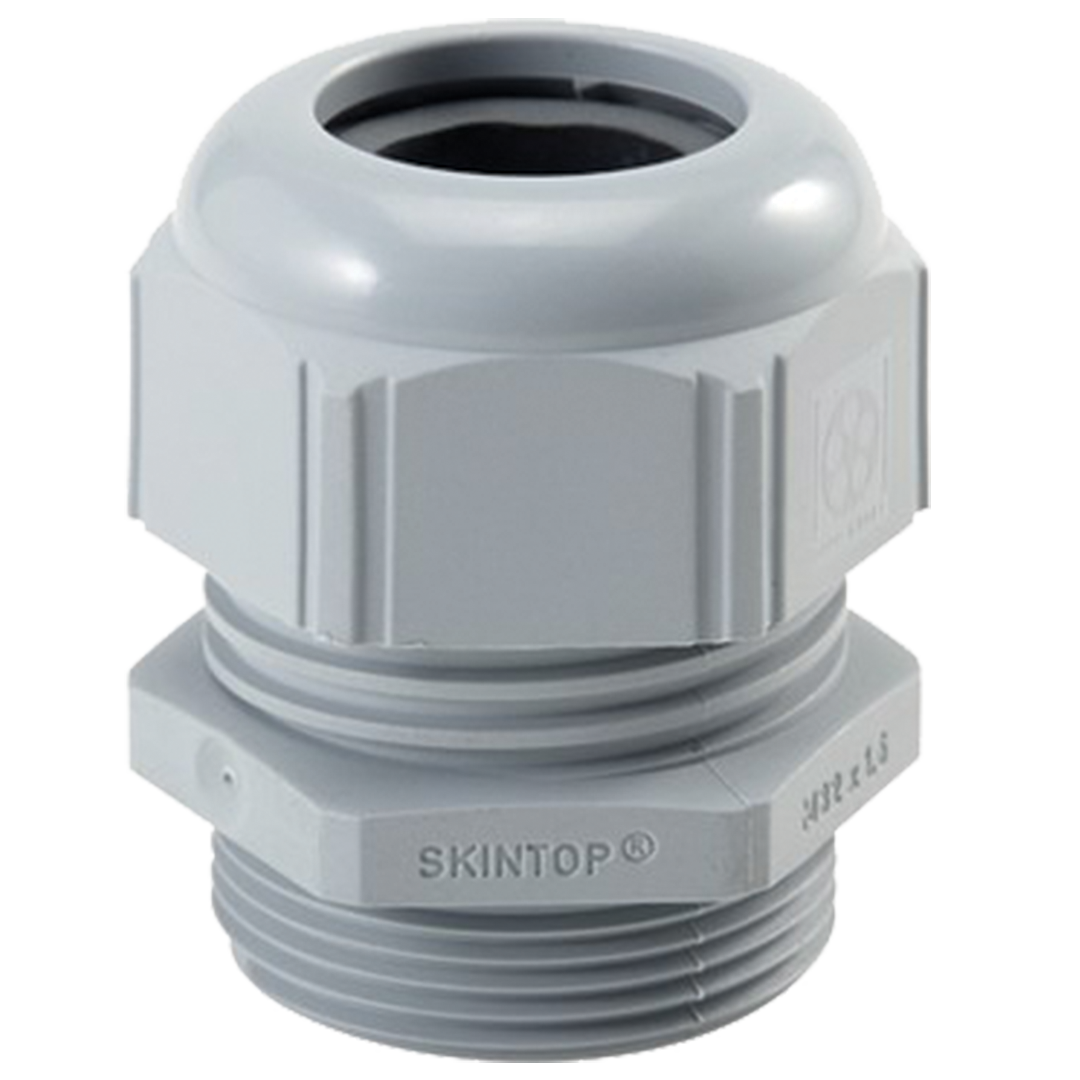

53111070 - SKINTOP ST-M 63x1,5 RAL 7001 SGY

Product Description

SKINTOP® ST-M, increased oil-resistant plastic cable gland with variable clamping ranges, permanent vibration protection, for offshore platforms.

Info

• With IP69 approval! Proven to withstand the most demanding cleaning procedures for industrial machinery with high-pressure cleaners and hot water!
• In practical box available in the web catalogue.

Benefits

• High oil-resistance for maximum reliability.
• Various accessories (e.g. multiple sealing inserts).
• Permanent vibration protection.
• Optimum strain relief.
• Wide, variable clamping ranges.

Application Range

• Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements.
• Machine and equipment manufacturing.
• Photovoltaic.
• Automation technology.
• Offshore platforms, equipment and shipyards.

Norm References / Approvals

• UL File Nr. E79903
• GGVS: TÜ.EGG.020-95

Product Make-up

• Metric connection thread acc. to DIN EN 60423
• Basis for technical information DIN IEC 62444

Technical Data

• Article number: 53111070
• Article designation / size:
• Ø F mm: 34-45
• SW wrench size mm: 66
• Overall length C mm: 71.0
• Thread length D mm: 12
• Pieces / PU: 5
