Description

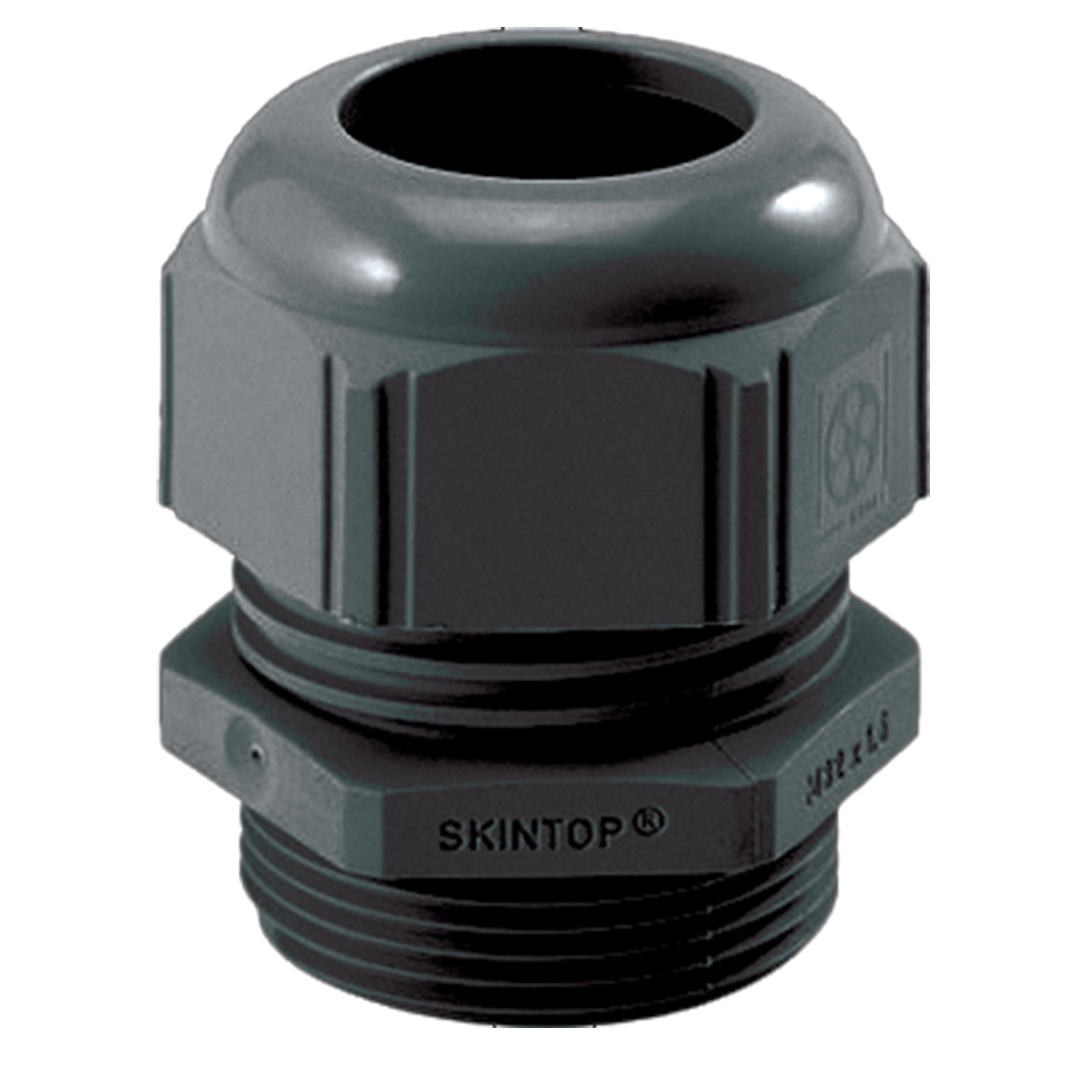

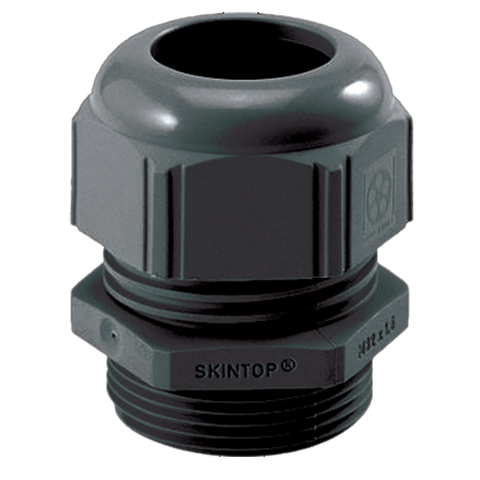

xSKINTOP® ST-M increased oil-resistant plastic cable gland with variable clamping ranges, permanent vibration protection, as well as optimum strain relief. Furthermore, with IP69 approval the plastic cable gland has been tested and proven to withstand the most demanding cleaning procedures for industrial machinery with high-pressure cleaners and hot water. The design and materials of the gland have carefully been chosen to endure a wide range of application. Be is application areas where a lot of cables and wires need to be inserted into housings with minimum space requirements for machine and equipment manufacturing. Lastly, SKINTOP® ST-M range can be utilised in both Energy and Automation Industries.
Specifications
x
| Attribute Name | Attribute Value |
|---|---|
| Colour | Black |
| Size | M12 |
Product Features
- High oil-resistance for maximum reliability
- Permanent vibration protection
- Wide, variable clamping ranges
- Optimum strain relief
- Various accessories (e.g. multiple sealing inserts)
Application Range
- Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements
- Machine and equipment manufacturing
- Photovoltaic
- Automation technology
- Offshore platforms, equipment and shipyards
Norm References / Approvals
- UL File Nr. E79903
- GGVS: TÜ.EGG.020-95
Product Make-up
- Metric connection thread acc. to DIN EN 60423
- Basis for technical information DIN IEC 62444
Material
- Body: Polyamide
- Seal: CR
Protection Rating
- IP 68 - 5 bar
- IP 69
- NEMA Type 1, 12
