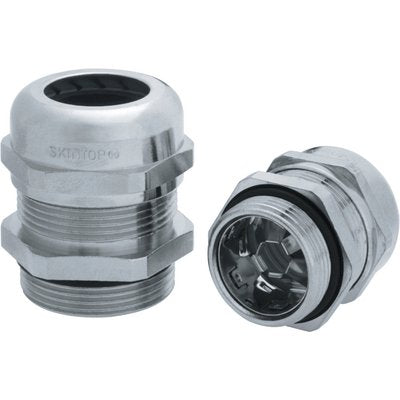

Lapp Skintop MS-SC-M Cable gland, brass, M16 x 1.5
Lapp Skintop MS-SC-M Cable gland, brass, M16 x 1.5

Lapp Skintop MS-SC-M Cable gland, brass, M16 x 1.5

This SKINTOP® MS-SC-M cable gland offers EMC protection with a low-resistance screen contact for earthing of copper braiding. It is used in telecommunications and industrial applications where EMC compliance is essential.
Vendor: Lapp Kabel
SKU: 53112620
Availability: In stock
Product type: Cable & Cable Management
Please hurry! Only 25 left in stock
Description
Description
x
This SKINTOP® MS-SC-M cable gland offers EMC protection with a low-resistance screen contact for earthing of copper braiding. It is used in telecommunications and industrial applications where EMC compliance is essential.
Specifications
Specifications
x
IP RatingIP 68 - 10 bar IP 69 NEMA Type 1, 4x, 6, 12
Compliance / CertificationsUL File Nr. E79903
Country of OriginGermany
Temperature: Operating-25°C to 100°C
MaterialBody: Nickel-plated brass Insert / Polyamide Sealing: CR / O-ring: NBR
Article Designation SizeM16 x 1,5
Thread: Length (mm)7mm
Pieces50 pc(s)
Documents
Documents
x
Download Datasheet
