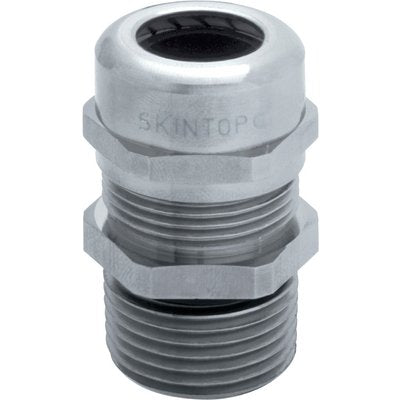

Lapp Skintop MS-M-XL Metric cable gland, M25 x 1.5, Ø 9 - 17
Lapp Skintop MS-M-XL Metric cable gland, M25 x 1.5, Ø 9 - 17

Lapp Skintop MS-M-XL Metric cable gland, M25 x 1.5, Ø 9 - 17

This SKINTOP® MS-M-XL cable gland is designed for thick walls, providing reliable strain relief and chemical resistance. It has a wide clamping range, making it ideal for industrial applications involving thicker walls.
Vendor: Lapp Kabel
SKU: 53112035
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Description
Description
x
This SKINTOP® MS-M-XL cable gland is designed for thick walls, providing reliable strain relief and chemical resistance. It has a wide clamping range, making it ideal for industrial applications involving thicker walls.
Specifications
Specifications
x
IP RatingIP 68 - 10 bar IP 69 NEMA Type 1, 4x, 6, 12
Compliance / CertificationsUL File Nr. E79903
Country of OriginGermany
Temperature: Operating-25°C to 100°C
MaterialBody: Nickel-plated brass Insert / Polyamide Sealing: CR / O-ring: NBR
Part Length (mm)42.5mm
Article Designation SizeM25 x 1.5
Pieces25 pc(s)
Documents
Documents
x
Download Datasheet
