Description

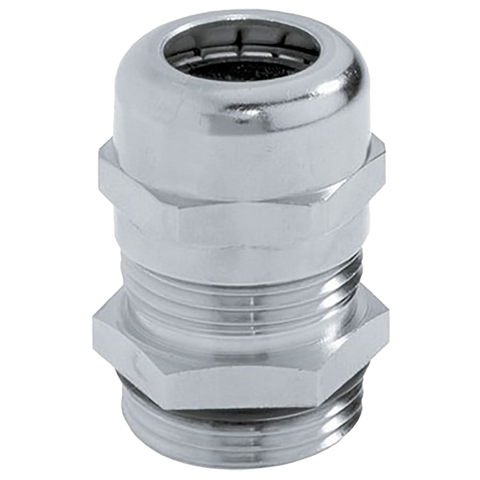

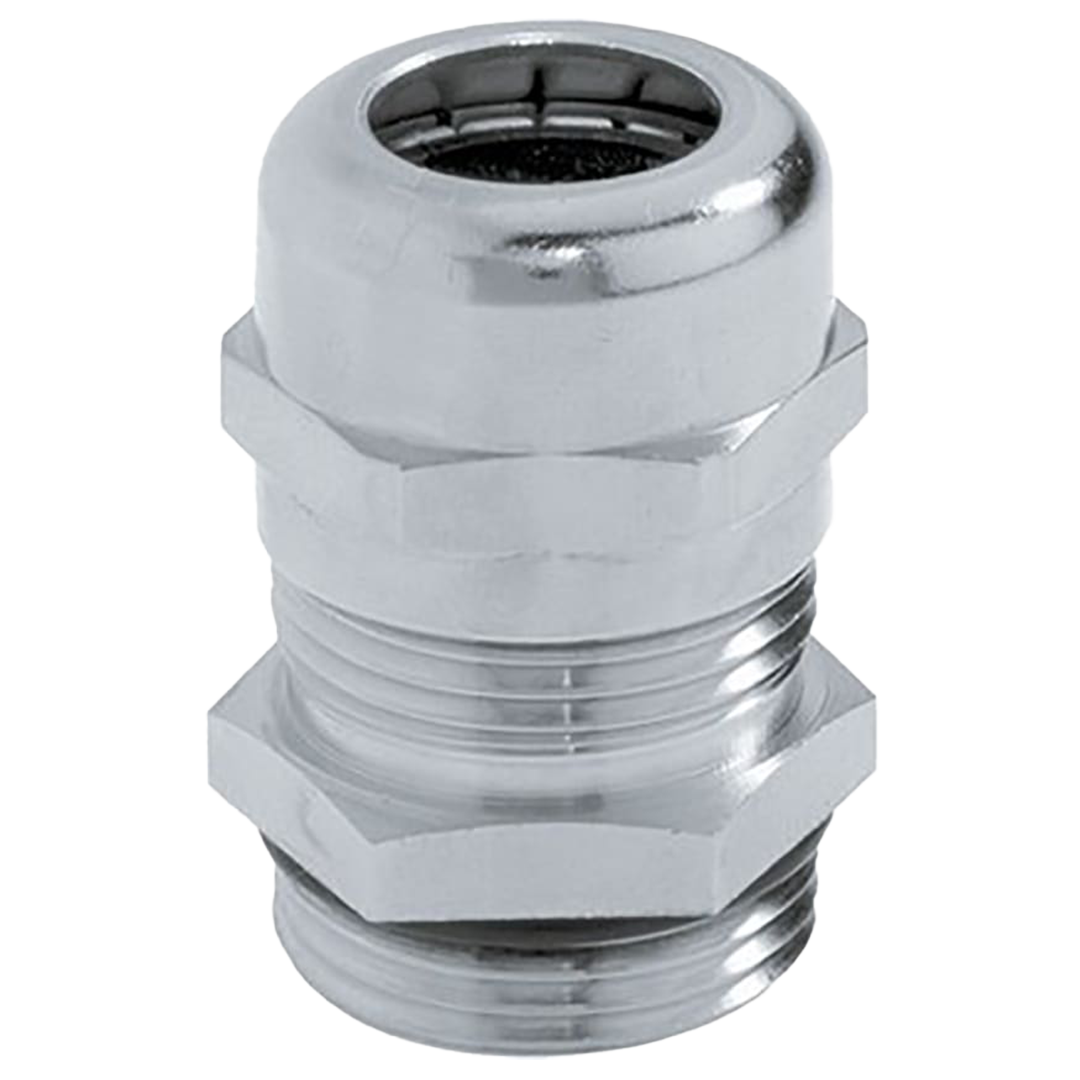

xThis brass cable gland offers mechanical and chemical stability for cable diameters up to 98 mm. It features high chemical resistance, corrosion resistance, and mechanical protection, making it ideal for industrial environments. It is IP69-rated, providing protection against high-pressure cleaning and ensuring optimal strain relief. The gland is suitable for outdoor use, with a temperature range of -40°C to +100°C.
Specifications
x| IP Rating | IP 68 - 10 bar IP 69 (M12 - M63) |
| Compliance / Certifications | UL File Nr. E79903 / VDE, UL, and DNV approval available up to size M75x1.5 |
| Country of Origin | Germany |
| Temperature: Operating | -25°C to 100°C |
| Material: Inner Conductor / Core | CR sealing / Nickel-plated brass / O-ring: NBR / Polyamide insert |
| Part Length (mm) | 45.5mm |
| Thread: Length (mm) | 9mm |
| Pieces | 25 pc(s) |
