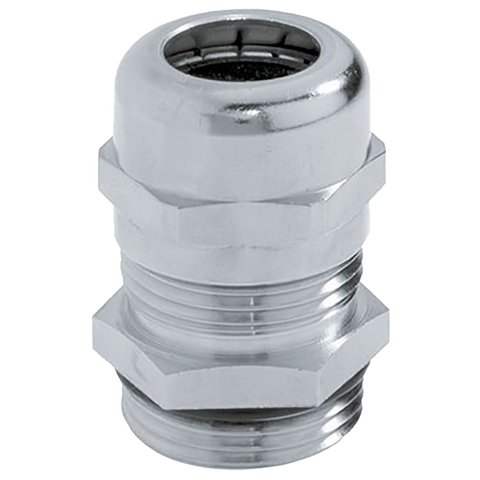

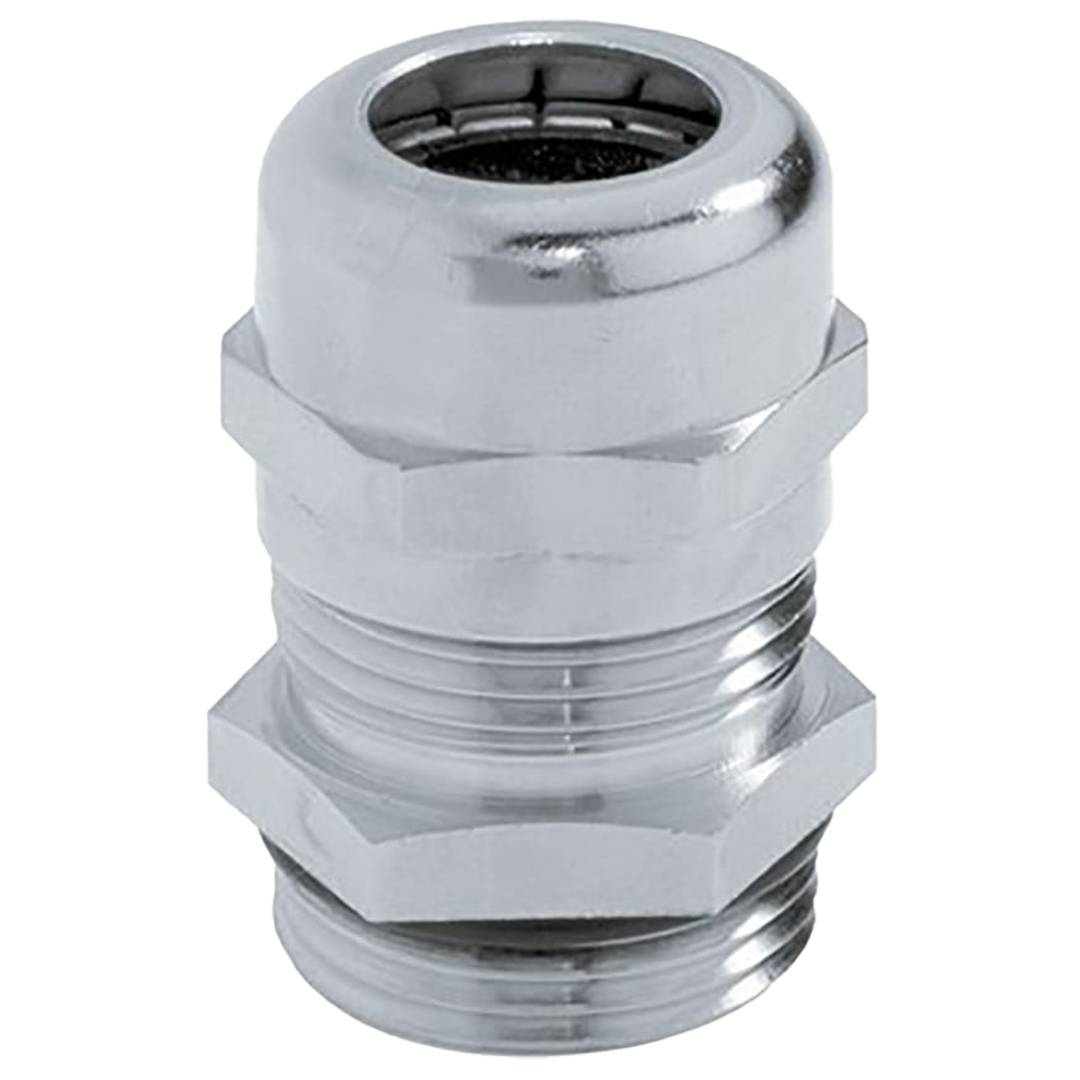

Lapp Skintop MS-M Cable gland, brass, M25 x 1.5, Ø 9 - 17

Lapp Skintop MS-M Cable gland, brass, M25 x 1.5, Ø 9 - 17

This M25 x 1.5 brass cable gland is designed for sealing and strain-relieving cable entry into enclosures, providing protection against high mechanical and chemical stress. It is also available in a lead-free version for more sustainable applications.
Vendor: Lapp Kabel
SKU: 53112030
Availability: In stock
Product type: Cable & Cable Management
Please hurry! Only 91 left in stock
Ask an expert
Description
Description
x
This M25 x 1.5 brass cable gland is designed for sealing and strain-relieving cable entry into enclosures, providing protection against high mechanical and chemical stress. It is also available in a lead-free version for more sustainable applications.
Specifications
Specifications
x
IP RatingIP 68 - 10 bar IP 69 (M12 - M63) NEMA Type 1, 4x, 6, 12
Country of OriginGermany
Temperature: Operating-25°C to +100°C
Material: Jacket / Outer SheathBody: nickel-plated brass Insert: polyamide Sealing: CR O-ring: NBR
Part Length (mm)38.5mm
Article Designation SizeM25 x 1.5
Thread: Length (mm)8mm
Documents
Documents
x
Download Datasheet
