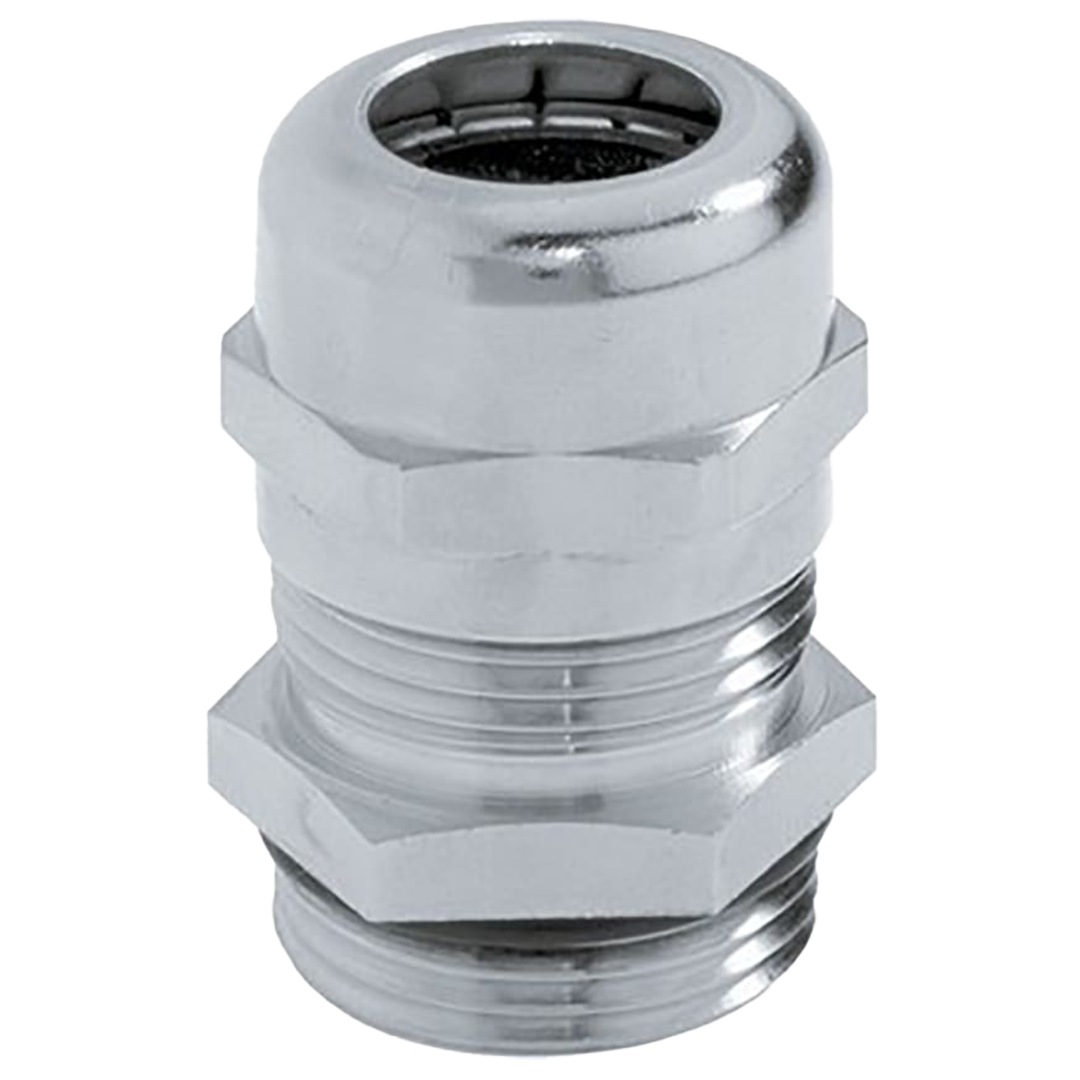

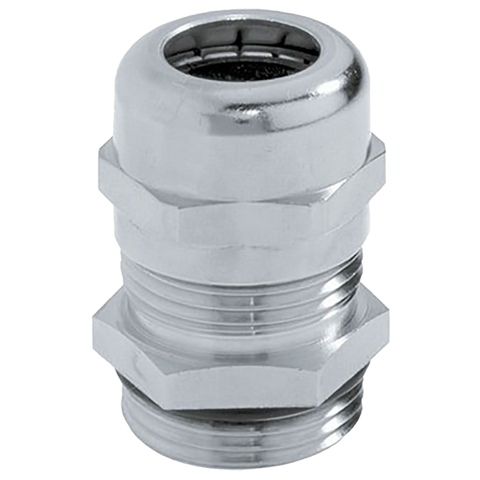

Lapp Skintop MS-M Brass cable gland, M20x 1.5, Ø 7 - 13
Lapp Skintop MS-M Brass cable gland, M20x 1.5, Ø 7 - 13

Lapp Skintop MS-M Brass cable gland, M20x 1.5, Ø 7 - 13

This brass cable gland is designed for M20 x 1.5 thread sizes and is ideal for use in environments requiring mechanical and chemical stability. It offers excellent protection against oils, corrosion, and temperature extremes, making it suitable for outdoor and industrial applications.
Vendor: Lapp Kabel
SKU: 53112020
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Description
Description
x
This brass cable gland is designed for M20 x 1.5 thread sizes and is ideal for use in environments requiring mechanical and chemical stability. It offers excellent protection against oils, corrosion, and temperature extremes, making it suitable for outdoor and industrial applications.
Specifications
Specifications
x
IP RatingIP 68 - 10 bar IP 69 (M12 - M63) NEMA Type 1, 4x, 6, 12
Country of OriginGermany
Temperature: Operating-25°C to +100°C
Material: Jacket / Outer SheathBody: nickel-plated brass Insert: polyamide Sealing: CR O-ring: NBR
Part Length (mm)37mm
Article Designation SizeM20 x 1.5
Thread: Length (mm)8mm
Documents
Documents
x
Download Datasheet
