Spiral Gland M20

Product Information

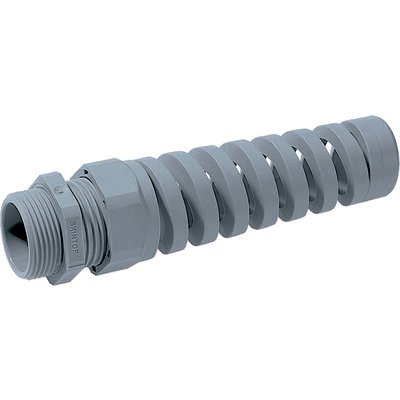

Product Name: SKINTOP® BS-M20 Grey Gland with Bending Protection (7 to 13mm)

Manufacturer: SKINTOP®

Product Description

SKINTOP® BS-M, plastic cable gland with bending and anti-kink protection, to protect flexible cables, for moving machine parts.

Benefits

• Reliable bending and anti-kink protection
• Cable conservation
• Functional reliability
• To protect flexible cables

Application Range

• Cables for electrical appliances and machinery that are moved under normal use must be protected against excessive bending as required in accordance with VDE 0700-1
• Handheld device
• Robotics industry
• Light and sound applications
• Moving machine parts

Norm References / Approvals

UL File Nr. E79903

Product Make-up

• Metric connection thread acc. to DIN EN 60423
• Basis for technical information DIN IEC 62444

Material

• Body: Polyamide
• Seal: CR

Protection Rating

• IP 68 - 5 bar
• NEMA Type 1, 12

Temperature Range

-20°C to +100°C
